4 TEE FLANGED STD BLACK C/I

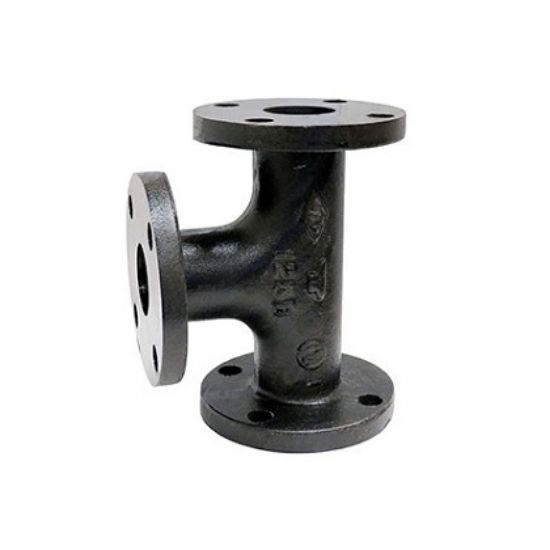

4" X 4" X 4" Black Flanged Cast Iron Tee

$0.00

Qty:

Tee, Model: 811, Cast Iron, End Connection 1: Flanged, Fitting Size 1: 4 in., Pressure - Maximum: 200 psi, End Connection 2: Flanged, Fitting Size 2: 4 in., Specifications - ASTM: ASTM A-126 Class A/B, End Connection 3: Flanged, Fitting Size 3: 4 in., Other Physical Dimensions: 6-1/2 in. Centre to End, 9 in. Flange Diameter, 15/16 in. Flange Thickness, 1/2 in. Wall Thickness, Maximum Temperature: -20 to 150F, Specifications - ASME: ASME B16.1, Coating: Black, STD Schedule, Pressure Class: 125#, STD Schedule

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Cast Iron
Coating	Black
End Connection 1	Flanged
End Connection 2	Flanged
End Connection 3	Flanged
Fitting Size 1	4 in.
Fitting Size 2	4 in.
Fitting Size 3	4 in.
Maximum Temperature	-20 to 150F
Pressure - Maximum	200 psi
Pressure Class	125#
Schedule	STD
Specifications - ASME	ASME B16.1
Specifications - ASTM	ASTM A-126 Class A/B
