CLCAFS222221

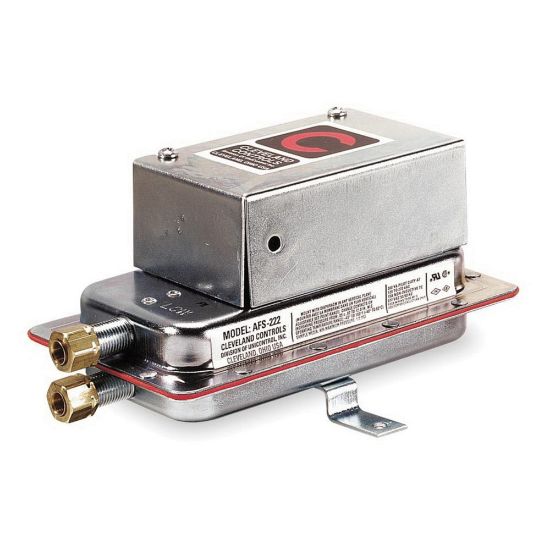

Cleveland Controls AFS-222 Zinc-Plated Steel HVAC/General Purpose Air Sensing Switch, 2.4A at 24 VAC, 15A at 277 VAC, 0.02 - 0.8 in. WC, SPST

$0.00

Qty:

HVAC/General Purpose Air Sensing Switch, 3-1/4 in. Width, 6-1/8 in. Height, Material: Steel, AMP: 2.4A at 24 VAC, 15A at 277 VAC, Colour/Finish Name: Zinc-Plated, Depth: 3-1/4 in., End Connection 1: Male UNS 2A Threaded, Fitting Size 1: 7⁄16-24, Specifications - UL Listed: Yes, Temperature Range: -40 to 180F, 0.02 - 0.8 in. WC Differential, 0.05 - 12 in. WC Set Point Pressure Rating, SPST Configuration, Electrical Connection: Screw-type Terminals with Cup Washers, Pilot Duty Rating: 300 VA at 115 - 277 VAC

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3-1/4 in.
Height	6-1/8 po
Material	Steel
AMP	2.4A at 24 VAC, 15A at 277 VAC
Colour/Finish Name	Zinc-Plated
Configuration	SPST
Depth	3-1/4 in.
Electrical Connection	Screw-type Terminals with Cup Washers
End Connection 1	Male UNS 2A Threaded
Fitting Size 1	7⁄16-24
Pilot Duty Rating	300 VA at 115 - 277 VAC
Pressure Rating	0.02 - 0.8 in. WC Differential, 0.05 - 12 in. WC Set Point
Specifications - UL Listed	Yes
Temperature Range	-40 to 180F
