CLOF6102L3

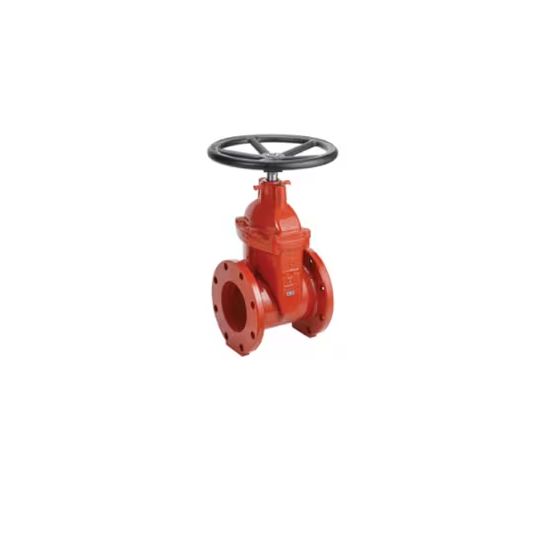

Clow F6102L-3 Coated Non-Rising Stem Open Left Resilient Wedge Gate Valve, 3 in., Flanged

Manufacturer: Clow

$0.00

Qty:

Open Left Resilient Wedge Gate Valve, F-6102 Series, 200mm Length, End Connection 1: Flanged, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Flanged, Other Physical Dimensions: 19mm Flange Thickness x 190mm Flange Diameter, 315mm Inlet Centre to Top of Valve, 5/8 in. Bolt, 75mm Bore, Valve Size: 3 in., Specifications - ANSI: ANSI B16.1 Class 125, Coating: Coated, Number of Holes: 4-Flanged, Non-Rising Valve Stem, Waterworks Application: Water

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	200mm
Coating	Coated
End Connection 1	Flanged
End Connection 2	Flanged
Number of Holes	4-Flanged
Specifications - ANSI	ANSI B16.1 Class 125
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Valve Size	3 in.
Valve Stem	Non-Rising
Waterworks Application	Water
