F6102 6" FLG GATE VALVE OL

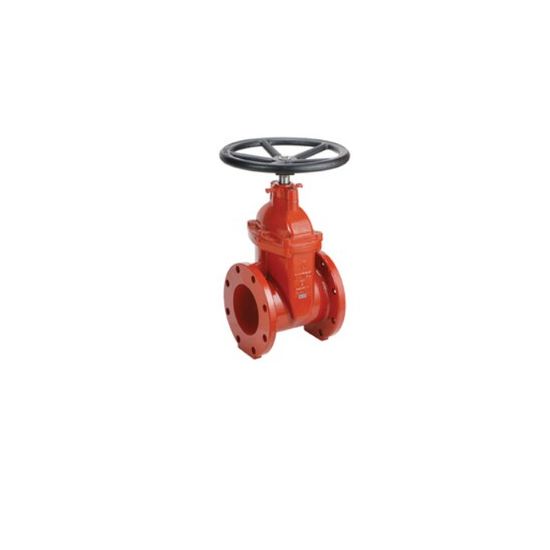

Clow F6102L-6 Coated Non-Rising Stem Open Left Resilient Wedge Gate Valve, 6 in., Flanged

Manufacturer: Clow

$0.00

Qty:

Open Left Resilient Wedge Gate Valve, F-6102 Series, 265mm Length, End Connection 1: Flanged, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Flanged, Other Physical Dimensions: 25mm Flange Thickness x 280mm Flange Diameter, 480mm Inlet Centre to Top of Valve, 3/4 in. Bolt, 160mm Bore, Valve Size: 6 in., Specifications - ANSI: ANSI B16.1 Class 125, Coating: Coated, Number of Holes: 8-Flanged, Non-Rising Valve Stem, Waterworks Application: Water

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	265mm
Coating	Coated
End Connection 1	Flanged
End Connection 2	Flanged
Number of Holes	8-Flanged
Specifications - ANSI	ANSI B16.1 Class 125
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Valve Size	6 in.
Valve Stem	Non-Rising
Waterworks Application	Water
