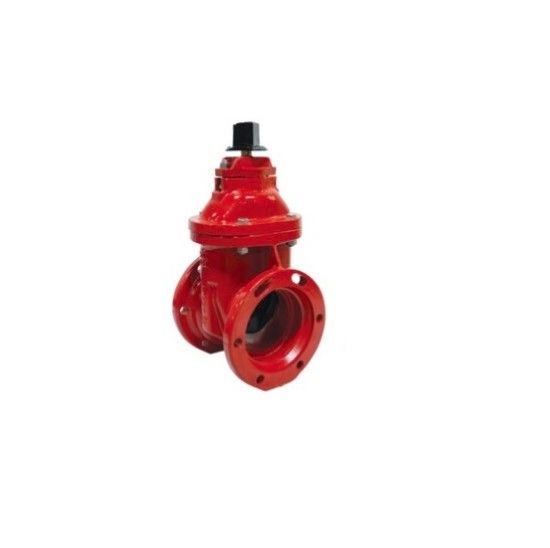

Picture of LD+ F6112 203MM VALVE TJ SS 304 CLOW

LD+ F6112 203MM VALVE TJ SS 304 CLOW

Clow F6112-8-SS F-6112 Series 8 in. Flanged Ductile Iron Non-Rising Stem Resilient Wedge Gate Valve
Manufacturer: Clow
$0.00
Resilient Wedge Gate Valve, F-6112 Series, 435mm Length, End Connection 1: Tyton, Material Type: 304 SS, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Tyton, Other Physical Dimensions: 570mm Inlet Centre to Top of Valve, Valve Size: 203mm, Specifications - ANSI: ANSI A21.11, Specifications - AWWA: AWWA C-111, Stainless Steel Valve Trim, Non-Rising Valve Stem, Waterworks Application: Water
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Fusion Bonded Epoxy
End Connection Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Length 17-1/8 in.
Material Type 304 SS
Pressure - Maximum 250 psi
Pressure Class 125#
Recommended Valve Application Water
Specifications - ANSI ANSI A21.11
Specifications - ASTM ASTM D-429
Specifications - AWWA AWWA C-111;AWWA C-509;AWWA C-550
Specifications - FM Approved Yes
Specifications - NSF NSF 61
Specifications - UL Listed Yes
Style Name F-6112 Series
Valve Body Style Open Left
Valve Bonnet Type Bolted
Valve Disc Material Ductile Iron
Valve Operator Operating Nut
Valve Port Opening Full Port
Valve Seat Material EPDM
Valve Size 8 in.
Valve Stem Non-Rising
Valve Type Resilient Wedge Gate Valve
Waterworks Application Sewer
Application Sewage
Product Type Resilient Wedge Gate Valves
Valve Body Material Ductile Iron
