12-205-08 15PSI 2 SAFETY VLV

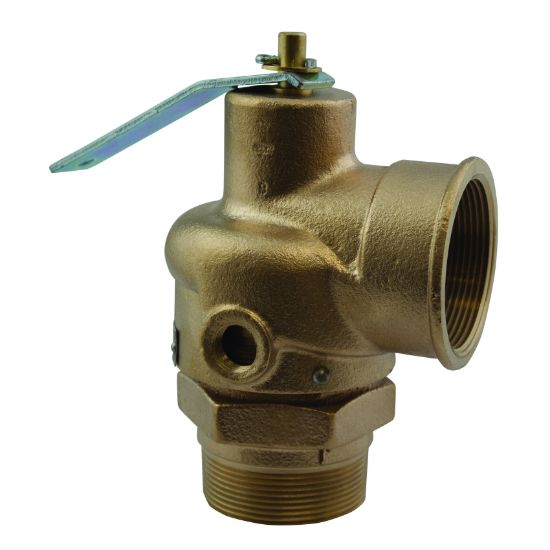

Apollo 12-205 Bronze Safety Relief Valve, 2 in., MNPT x FNPT, 15psig

Manufacturer: Conbraco

$0.00

Qty:

Safety Relief Valve, 12-200 Series, Model: 12-205, 6.62 in. Width, 6 in. Height, Bronze, End Connection 1: MNPT, Pressure - Maximum: 15psig, End Connection 2: FNPT, Fitting Size 2: 2 in., Specifications - ASTM: ASTM B-584, ASTM B-16, PTFE Coated Valve Seat, Valve Size: 2 in., PTFE Coated EPDM Valve Seal, Brass Valve Disc, Maximum Temperature: 250F, 2500 lbs/hr Capacity, Recommended Valve Application: Steam

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	6.62 in.
Height	6 po
Material	Bronze
Capacity	2500 lbs/hr
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	2 in.
Maximum Temperature	250F
Pressure - Maximum	15psig
Recommended Valve Application	Steam
Specifications - ASTM	ASTM B-584, ASTM B-16
Valve Disc Material	Brass
Valve Seal Material	PTFE Coated EPDM
Valve Seat Material	PTFE Coated
Valve Size	2 in.
