13-213-B15 15PSI 1-1/4 SAFETY VALVE

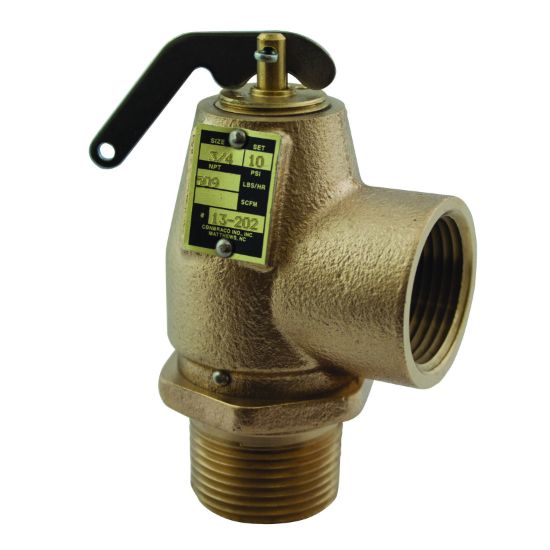

Apollo RVS 13 Bronze Test Lever Handle Safety Relief Valve, 1-1/4 x 1-1/2 in., MNPT x FNPT, 15psig
Manufacturer: Conbraco
$0.00
Safety Relief Valve, 13 Series, Model: RVS 13, 4-1/2 in. Height, Bronze, End Connection 1: MNPT, Pressure - Maximum: 15psig, End Connection 2: FNPT, Fitting Size 2: 1-1/2 in., Specifications - ASTM: ASTM B-584, Colour/Finish Name: Bronze, Valve Operator: Test Lever Handle, Modified TFE Valve Seat, Valve Size: 1-1/4 in., Dimension: 3.82 in. Installed Height, EPDM Valve Disc, Maximum Temperature: 250F, 1200 lbs/hr Capacity, Recommended Valve Application: Steam
Products specifications
products.specs.attributename products.specs.attributevalue
Height 4-1/2 po
Material Bronze
Capacity 1200 lbs/hr
Colour/Finish Name Bronze
Dimension 3.82 in. Installed Height
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 2 1-1/2 in.
Maximum Temperature 250F
Pressure - Maximum 15psig
Recommended Valve Application Steam
Specifications - ASTM ASTM B-584
Valve Disc Material EPDM
Valve Operator Test Lever Handle
Valve Seat Material Modified TFE
Valve Size 1-1/4 in.
