14-205-08 2" STEAM RELIEF VLV 15LB

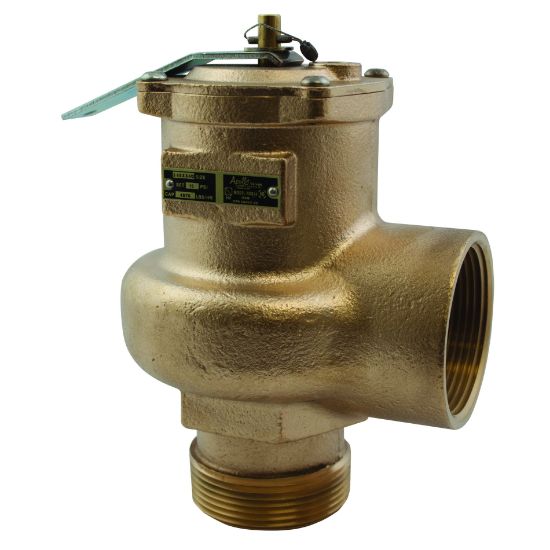

Apollo RSV14 Bronze 1-Piece Safety Relief Valve, 2 in., MNPT x FNPT, 15psig
Manufacturer: Conbraco
$0.00
Safety Relief Valve, 14 Series, Model: RSV14, 7.12 in. Width, 7.12 in. Height, Bronze, End Connection 1: MNPT, Pressure - Maximum: 15psig, End Connection 2: FNPT, Fitting Size 2: 2 in., Specifications - ASTM: ASTM B-584, EPDM Valve Seat, Valve Size: 2 in., Dimension: 5.8 in. Installed Height, PTFE Coated Valve Seal, PTFE Valve Disc, Maximum Temperature: 250F, 3150 lbs/hr Capacity, Recommended Valve Application: Steam, Valve Body Style: 1-Piece
Products specifications
products.specs.attributename products.specs.attributevalue
Width 7.12 in.
Height 7.12 in.
Material Bronze
Capacity 3150 lbs/hr
Dimension 5.8 in. Installed Height
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 2 2 in.
Maximum Temperature 250F
Pressure - Maximum 15psig
Recommended Valve Application Steam
Specifications - ASTM ASTM B-584
Valve Body Style 1-Piece
Valve Disc Material PTFE
Valve Seal Material PTFE Coated
Valve Seat Material EPDM
Valve Size 2 in.
