17-402 3/4MXF 150PSI RELF VLV

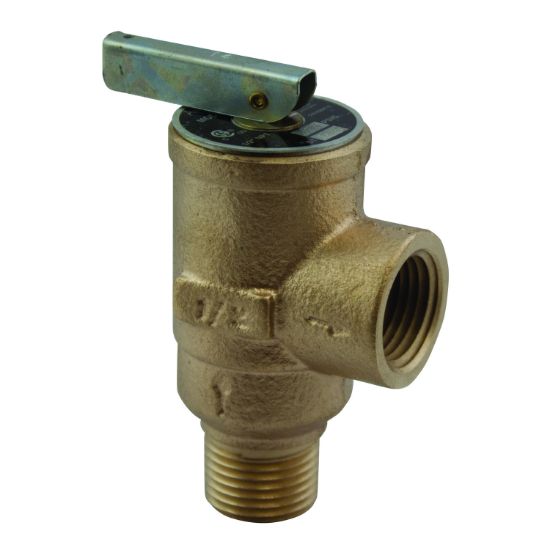

Conbraco 1740204 17 Series 3/4 in. MNPT x FNPT Bronze Uni-Body Safety Relief Valve, 150psig
Manufacturer: Conbraco
$0.00
Uni-Body Safety Relief Valve, 17 Series, Model: RVW17-34, Bronze, End Connection 1: MNPT, Pressure - Maximum: 150psig, End Connection 2: FNPT, Fitting Size 2: 3/4 in., Specifications - ASTM: ASTM B-584, Silicone Valve Seat, Valve Size: 3/4 in., Dimension: 2.73 in. Install Length, Maximum Temperature: 250F, 200000 btu/hr (CSA), 934000 btu/hr (ASME) Capacity, Recommended Valve Application: Water, Specifications - ANSI: ANSI Z21.22
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection MNPT x FNPT
End Connection 1 MNPT
End Connection 2 FNPT
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in.
Height 3-5/8 in.
Material Bronze
Maximum Temperature 250
Pressure - Maximum 150 psi
Recommended Valve Application Water
Specifications - ANSI ANSI Z21.22
Specifications - ASME Yes
Specifications - ASTM ASTM B-584
Style Name 17 Series
Valve Seat Material Silicone
Valve Size 1/2 in.
Product Type Relief Valves
