CON18C5118150

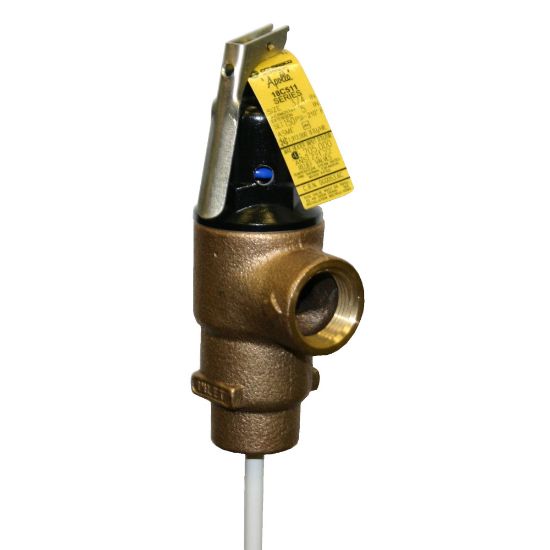

Apollo TPC Bronze Temperature and Pressure Relief Valve, 3/4 in., MNPT x FNPT

Manufacturer: Conbraco

$0.00

Qty:

Temperature and Pressure Relief Valve, 18C-500 Series, Model: TPC, 13.56 in. Length, Bronze, End Connection 1: MNPT, End Connection 2: FNPT, Fitting Size 2: 3/4 in., 210F Maximum - Temperature, 150# Pressure Class, Water Recommended Valve Application, Specifications - ANSI: ANSI Z21.22, Specifications - ASTM: ASTM B-584, B-16, Silicone Valve Disc, Silicone Valve Seat, Valve Size: 3/4 in., 205000 btu/hr (CSA), 1912000 btu/hr (ASME) Capacity, Other Physical Dimensions: 7.56 in. Element Length

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	13.56 in.
Material	Bronze
Capacity	205000 btu/hr (CSA), 1912000 btu/hr (ASME)
End Connection 1	MNPT
End Connection 2	FNPT
Fitting Size 2	3/4 in.
Maximum Temperature	210F
Pressure Class	150#
Recommended Valve Application	Water
Specifications - ANSI	ANSI Z21.22
Specifications - ASTM	ASTM B-584, B-16
Valve Disc Material	Silicone
Valve Seat Material	Silicone
Valve Size	3/4 in.
