ARE51C4ECAA901 COMP. HERM. 110V

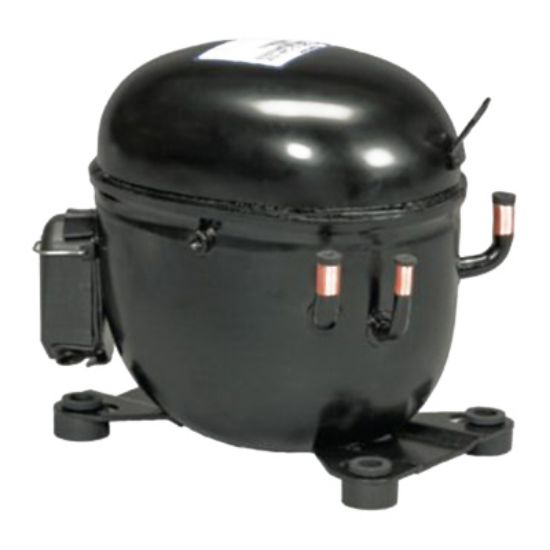

Copeland ARE51C4E-CAA901 Hermetic Compressor, 5220 btu/hr, R-12, 115 VAC at 60Hz, 1 PH, 8.8A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, ARE Series, 10-1/2 in. Length, 6.4 in. Width, 8.12 in. Height, Temperature Rating: 20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid, BTU: 5220 btu/hr, 6 EER, Phase: 1 PH, R-12 Refrigerant, 115 VAC Volts, 60Hz Frequency Rating, AMP: 8.8A, 62 - 67 dBA Decibel Rating, 3500 RPM, 865W Power Rating, Locked Rotor AMP: 48A, Suction Line (OD): 5/16 in., Liquid Line (OD): 1/4 in., 51 - 91 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10-1/2 in.
Width	6.4 in.
Height	8.12 po
AMP	8.8A
BTU	5220 btu/hr
Decibel Rating	62 - 67 dBA
EER	6
Frequency Rating	60Hz
Liquid Line (OD)	1/4 in.
Locked Rotor AMP	48A
Mass Flow	51 - 91 lbs/hr
Phase	1 PH
Power Rating	865W
Refrigerant	R-12
RPM	3500 RPM
Suction Line (OD)	5/16 in.
Temperature Rating	20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid
Volts	115 VAC
