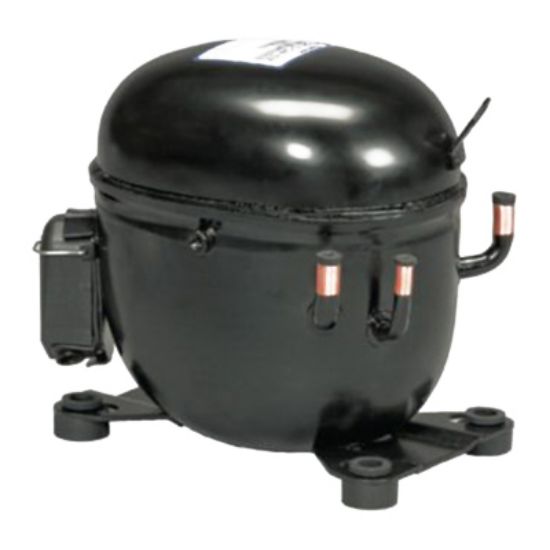

ASE26C4EIAA901 HERM COMP 120V

Copeland ASE26C4E-IAA901 Hermetic Compressor, 2600 btu/hr, R-404A, 115 VAC at 60Hz, 1 PH, 6.9A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, ASE Series, 10-1/2 in. Length, 6.4 in. Width, 7.9 in. Height, Temperature Rating: 0 - 20F Evaporator, 110 - 120F Condensing, 40F Return Gas, 110 - 120F Liquid, BTU: 2600 btu/hr, 4.1 EER, Phase: 1 PH, R-404A Refrigerant, 115 VAC Volts, 60Hz Frequency Rating, AMP: 6.9A, 3500 RPM, 569W Power Rating, Locked Rotor AMP: 29A, Suction Line (OD): 5/16 in., Liquid Line (OD): 1/4 in., 33 - 55 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10-1/2 in.
Width	6.4 in.
Height	7.9 po
AMP	6.9A
BTU	2600 btu/hr
EER	4.1
Frequency Rating	60Hz
Liquid Line (OD)	1/4 in.
Locked Rotor AMP	29A
Mass Flow	33 - 55 lbs/hr
Phase	1 PH
Power Rating	569W
Refrigerant	R-404A
RPM	3500 RPM
Suction Line (OD)	5/16 in.
Temperature Rating	0 - 20F Evaporator, 110 - 120F Condensing, 40F Return Gas, 110 - 120F Liquid
Volts	115 VAC
