KATB015ECAV800 COMP. 1.5HP 208-230/1

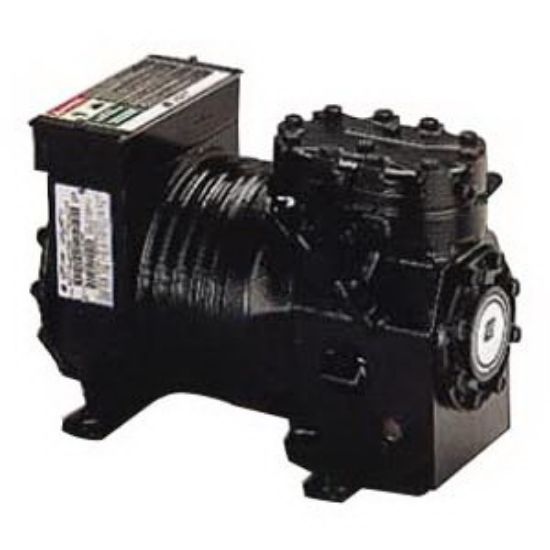

Copeland KATB-015ECAV800 Semi Hermetic Compressor, 4160 btu/hr, 208 - 230 VAC at 60Hz, 1 PH, 6.7A

Manufacturer: Copeland

$0.00

Qty:

Semi Hermetic Compressor, KATB Series, 14.38 in. Length, 9-1/2 in. Width, 10.44 in. Height, Temperature Rating: -25 to -40F Evaporator, 105F Condensing, 65F Return Gas, 105F Liquid, BTU: 4160 btu/hr, 3.1 EER, Phase: 1 PH, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 6.7A, 3500 RPM, Horsepower: 1.5 hp, 1340W Power Rating, Locked Rotor AMP: 55A, Suction Line (OD): 1/2 in., Liquid Line (OD): 3/8 in., 74 - 124 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14.38 in.
Width	9-1/2 in.
Height	10.44 po
AMP	6.7A
BTU	4160 btu/hr
EER	3.1
Frequency Rating	60Hz
Horsepower	1.5 hp
Liquid Line (OD)	3/8 in.
Locked Rotor AMP	55A
Mass Flow	74 - 124 lbs/hr
Phase	1 PH
Power Rating	1340W
RPM	3500 RPM
Suction Line (OD)	1/2 in.
Temperature Rating	-25 to -40F Evaporator, 105F Condensing, 65F Return Gas, 105F Liquid
Volts	208 - 230 VAC
