RRT64C1EIAV959 HERM COMP. 208-230/1

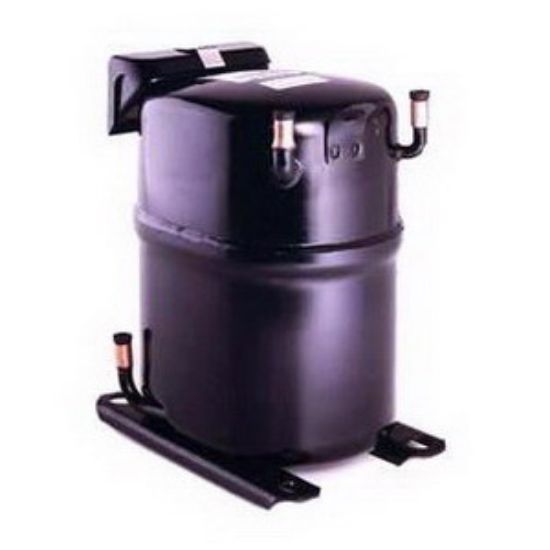

Copeland RRT64C1E-IAV959 Hermetic Compressor, 6610 btu/hr, R-134A, 208 - 230 VAC at 60Hz, 1 PH, 5.6A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RRT Series, 10.3 in. Length, 7.1 in. Width, 8.7 in. Height, Temperature Rating: 20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid, BTU: 6610 btu/hr, 6.75 EER, Phase: 1 PH, R-134A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 5.6A, 62 - 69 dBA Decibel Rating, 3500 RPM, 997W Power Rating, Locked Rotor AMP: 31A, Suction Line (OD): 3/8 in., Liquid Line (OD): 1/4 in., 65 - 115 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	8.7 po
AMP	5.6A
BTU	6610 btu/hr
Decibel Rating	62 - 69 dBA
EER	6.75
Frequency Rating	60Hz
Liquid Line (OD)	1/4 in.
Locked Rotor AMP	31A
Mass Flow	65 - 115 lbs/hr
Phase	1 PH
Power Rating	997W
Refrigerant	R-134A
RPM	3500 RPM
Suction Line (OD)	3/8 in.
Temperature Rating	20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid
Volts	208 - 230 VAC
