RRT81C1E-PFV959 RR COMP 208/230V 1PH

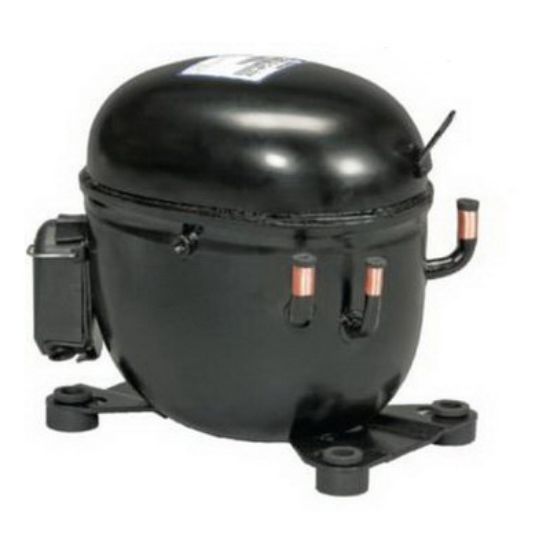

Copeland RRT81C1E-PFV-959 Hermetic Compressor, 9130 btu/hr, R-134A, 208 - 230 VAC at 60Hz, 1 PH, 4.35A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RRT Series, 10.3 in. Length, 7.1 in. Width, 9.8 in. Height, AMP: 4.35A, 9130 btu/hr BTU, Phase: 1 PH, R-134A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, 85 - 159 lbs/hr Mass Flow, Suction Line (OD): 3/8 in., Locked Rotor AMP: 35A, 70 - 73 dBA Decibel Rating, 9 EER, Liquid Line (OD): 3/8 in., 8 x 4.8 in. Base, 1015W Watts, RPM: 3500 RPM, Temperature Rating: 20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	9.8 po
AMP	4.35A
Base Size	8 x 4.8 in.
BTU	9130 btu/hr
Decibel Rating	70 - 73 dBA
EER	9
Frequency Rating	60Hz
Liquid Line (OD)	3/8 in.
Locked Rotor AMP	35A
Mass Flow	85 - 159 lbs/hr
Phase	1 PH
Refrigerant	R-134A
RPM	3500 RPM
Suction Line (OD)	3/8 in.
Temperature Rating	20 - 45F Evaporator, 120 - 130F Condensing, 65F Return Gas, 120 - 130F Liquid
Volts	208 - 230 VAC
Watts	1015W
