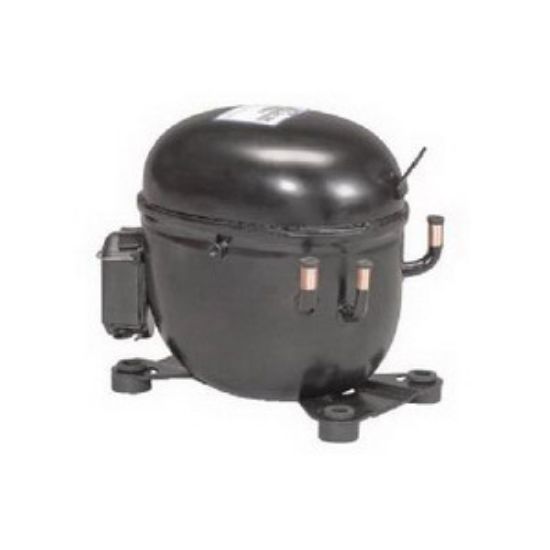

RST10K1EPFV901 HERM. COMP. 208-230/1/60

Copeland RST10K1E-PFV901 Hermetic Compressor, 9950 btu/hr, R-22, 208 - 230 VAC at 60Hz, 1 PH, 7.8A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RST Series, 10.3 in. Length, 7.1 in. Width, 9.8 in. Height, Temperature Rating: -10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid, BTU: 9950 btu/hr, 5.95 EER, Phase: 1 PH, R-22 Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 7.8A, 73 - 75 dBA Decibel Rating, 3500 RPM, 1670W Power Rating, Locked Rotor AMP: 51A, Suction Line (OD): 1/2 in., Liquid Line (OD): 3/8 in., 110 - 237 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	9.8 po
AMP	7.8A
BTU	9950 btu/hr
Decibel Rating	73 - 75 dBA
EER	5.95
Frequency Rating	60Hz
Liquid Line (OD)	3/8 in.
Locked Rotor AMP	51A
Mass Flow	110 - 237 lbs/hr
Phase	1 PH
Power Rating	1670W
Refrigerant	R-22
RPM	3500 RPM
Suction Line (OD)	1/2 in.
Temperature Rating	-10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid
Volts	208 - 230 VAC
