RST55C1ECAV901 COMPRESSOR 230 VOLTS

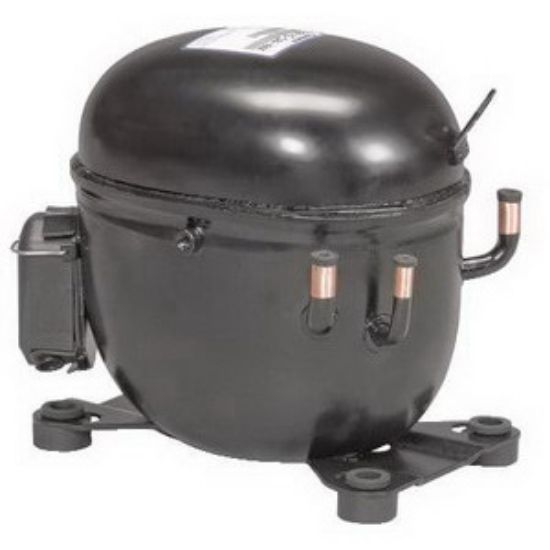

Copeland RST55C1E-CAV901 Hermetic Compressor, 5300 btu/hr, R-404A, R-22, 208 - 230 VAC at 60Hz, 1 PH, 4.8A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RST Series, 10.3 in. Length, 7.1 in. Width, 8.7 in. Height, Temperature Rating: -10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid, BTU: 5300 btu/hr, 5.15 EER, Phase: 1 PH, R-404A, R-22 Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 4.8A, 63 - 67 dBA Decibel Rating, 3500 RPM, 1025W Power Rating, Locked Rotor AMP: 33.7A, Suction Line (OD): 3/8 in., Liquid Line (OD): 1/4 in., 56 - 126 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	8.7 po
AMP	4.8A
BTU	5300 btu/hr
Decibel Rating	63 - 67 dBA
EER	5.15
Frequency Rating	60Hz
Liquid Line (OD)	1/4 in.
Locked Rotor AMP	33.7A
Mass Flow	56 - 126 lbs/hr
Phase	1 PH
Power Rating	1025W
Refrigerant	R-404A, R-22
RPM	3500 RPM
Suction Line (OD)	3/8 in.
Temperature Rating	-10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid
Volts	208 - 230 VAC
