RST70C1EPFV901 COMP. 230V.

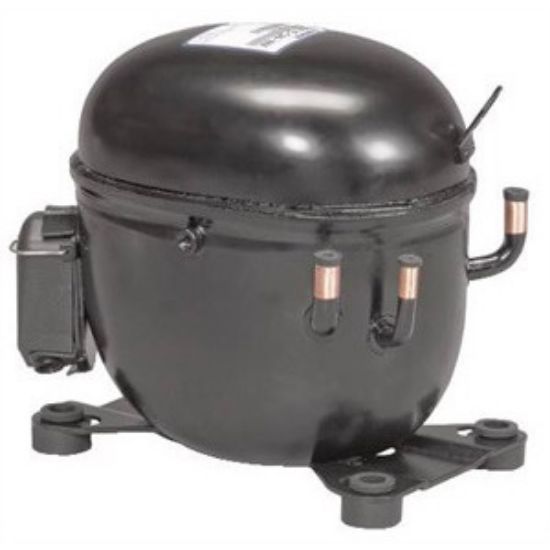

Copeland RST70C1E-PFV901 Hermetic Compressor, 6950 btu/hr, R-404A, R-22, 208 - 230 VAC at 60Hz, 1 PH, 6.5A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RST Series, 10.3 in. Length, 7.1 in. Width, 9.8 in. Height, Temperature Rating: 20 - 45F Evaporator, 120 - 130F Condensing, 40F Return Gas, 120 - 130F Liquid, BTU: 6950 btu/hr, 8.7 EER, Phase: 1 PH, R-404A, R-22 Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 6.5A, 73 - 77 dBA Decibel Rating, 3500 RPM, 1300W Power Rating, Locked Rotor AMP: 46A, Suction Line (OD): 3/8 in., Liquid Line (OD): 3/8 in., 100 - 179 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	9.8 po
AMP	6.5A
BTU	6950 btu/hr
Decibel Rating	73 - 77 dBA
EER	8.7
Frequency Rating	60Hz
Liquid Line (OD)	3/8 in.
Locked Rotor AMP	46A
Mass Flow	100 - 179 lbs/hr
Phase	1 PH
Power Rating	1300W
Refrigerant	R-404A, R-22
RPM	3500 RPM
Suction Line (OD)	3/8 in.
Temperature Rating	20 - 45F Evaporator, 120 - 130F Condensing, 40F Return Gas, 120 - 130F Liquid
Volts	208 - 230 VAC
