RST80C1EPFA901 HERM. COMP. 115V

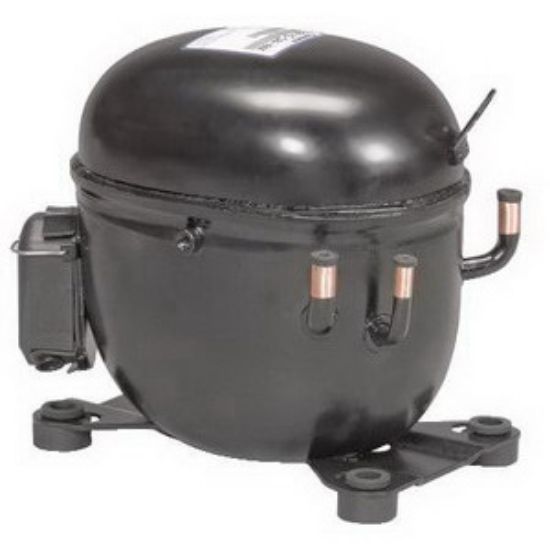

Copeland RST80C1E-PFA-901 Hermetic Compressor, 8210 btu/hr, R-404A, R-22, 115 VAC at 60Hz, 1 PH, 12.25A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Compressor, RST Series, 10.3 in. Length, 7.1 in. Width, 9.8 in. Height, AMP: 12.25A, 8210 btu/hr BTU, Phase: 1 PH, R-404A, R-22 Refrigerant, 115 VAC Volts, 60Hz Frequency Rating, 90 - 196 lbs/hr Mass Flow, Suction Line (OD): 1/2 in., Locked Rotor AMP: 81A, 71 - 74 dBA Decibel Rating, 5.95 EER, Liquid Line (OD): 3/8 in., 8 x 4.8 in. Base, 1375W Watts, RPM: 3500 RPM, Temperature Rating: -10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.3 in.
Width	7.1 in.
Height	9.8 po
AMP	12.25A
Base Size	8 x 4.8 in.
BTU	8210 btu/hr
Decibel Rating	71 - 74 dBA
EER	5.95
Frequency Rating	60Hz
Liquid Line (OD)	3/8 in.
Locked Rotor AMP	81A
Mass Flow	90 - 196 lbs/hr
Phase	1 PH
Refrigerant	R-404A, R-22
RPM	3500 RPM
Suction Line (OD)	1/2 in.
Temperature Rating	-10 to 20F Evaporator, 120F Condensing, 40F Return Gas, 120F Liquid
Volts	115 VAC
Watts	1375W
