ZF11K4ETF5931 COMP. SCROLL 208/3

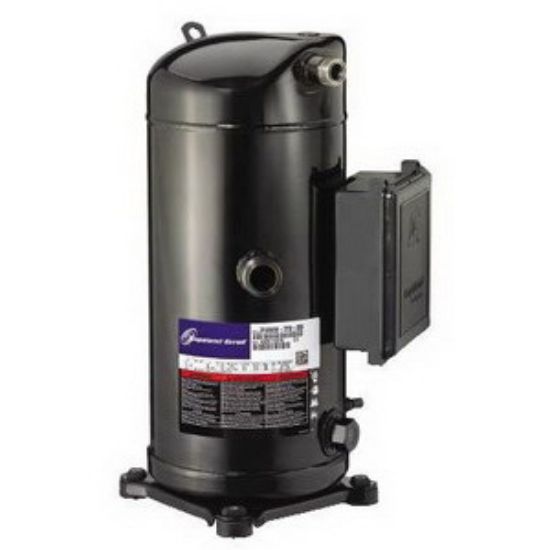

Copeland ZF11K4E-TF5-931 Hermetic Scroll Compressor, 12900 btu/hr, R-404A, 200 - 230 VAC at 60Hz, 3 PH, 10A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZF Series, 9.57 in. Length, 9.52 in. Width, 16.46 in. Height, AMP: 10A, 12900 btu/hr BTU, Horsepower: 3.5 hp, Phase: 3 PH, R-404A Refrigerant, 200 - 230 VAC Volts, 60Hz Frequency Rating, 115 - 169 lbs/hr Mass Flow, Suction Line (OD): 3/4 in., Locked Rotor AMP: 89A, 74 - 79 dBA Decibel Rating, 9.3 EER, Liquid Line (OD): 1/2 in., 7-1/2 x 7-1/2 in. Base, 1390W Watts, RPM: 2900 RPM, Temperature Rating: -25 to -40F Evaporator, 50F Condensing, 65F Return Gas, 50F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.57 in.
Width	9.52 in.
Height	16.46 po
AMP	10A
Base Size	7-1/2 x 7-1/2 in.
BTU	12900 btu/hr
Decibel Rating	74 - 79 dBA
EER	9.3
Frequency Rating	60Hz
Horsepower	3.5 hp
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	89A
Mass Flow	115 - 169 lbs/hr
Phase	3 PH
Refrigerant	R-404A
RPM	2900 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	-25 to -40F Evaporator, 50F Condensing, 65F Return Gas, 50F Liquid
Volts	200 - 230 VAC
Watts	1390W
