ZF15K4EPFV961 SCROLL COMP. 208-230/1/60

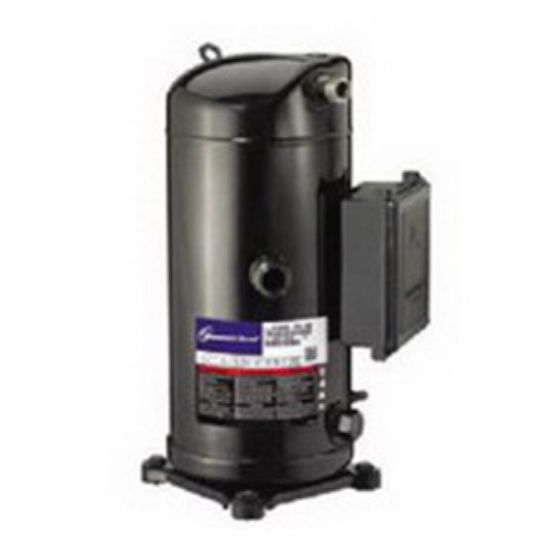

Copeland ZF15K4E-PFV-961 Hermetic Scroll Compressor, 16500 btu/hr, R-404A, R-507, 208 - 230 VAC at 60Hz, 1 PH, 17.9A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZF Series, 11.16 in. Length, 9.67 in. Width, 18-1/2 in. Height, Temperature Rating: -25 to -40F Evaporator, 105F Condensing, 65F Return Gas, 105F Liquid, BTU: 16500 btu/hr, 4.4 EER, Phase: 1 PH, R-404A, R-507 Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 17.9A, 78 - 83 dBA Decibel Rating, 3500 RPM, 3740W Power Rating, Locked Rotor AMP: 169A, Suction Line (OD): 7/8 in., Liquid Line (OD): 1/2 in., 202 - 296 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.16 in.
Width	9.67 in.
Height	18-1/2 po
AMP	17.9A
BTU	16500 btu/hr
Decibel Rating	78 - 83 dBA
EER	4.4
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	169A
Mass Flow	202 - 296 lbs/hr
Phase	1 PH
Power Rating	3740W
Refrigerant	R-404A, R-507
RPM	3500 RPM
Suction Line (OD)	7/8 in.
Temperature Rating	-25 to -40F Evaporator, 105F Condensing, 65F Return Gas, 105F Liquid
Volts	208 - 230 VAC
