ZP25K5EPFV830 SCROLL COMP 2HP 208-230/1

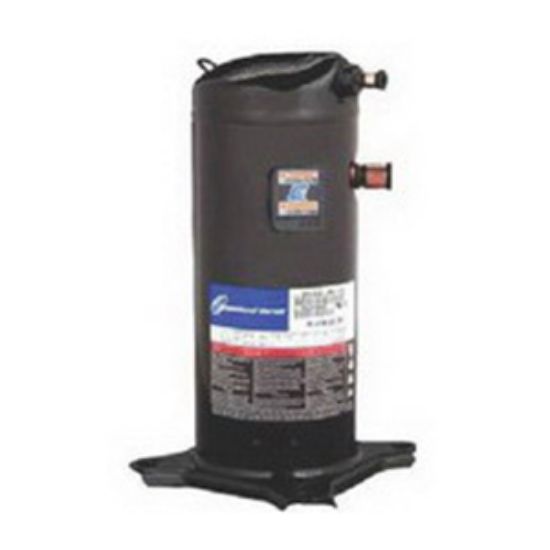

Copeland ZP25K5E-PFV-830 Hermetic Scroll Compressor, 25200 btu/hr, R-410A, 208 - 230 VAC at 60Hz, 1 PH, 11.1A

Manufacturer: Copeland

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.56 in.
Width	9.56 in.
Height	15.27 po
AMP	11.1A
BTU	25200 btu/hr
Decibel Rating	66 - 71 dBA
EER	10
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	73A
Mass Flow	372 - 421 lbs/hr
Phase	1 PH
Power Rating	2520W
Refrigerant	R-410A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
