ZR108KCETFE950 COMP. SCROLL 575/3

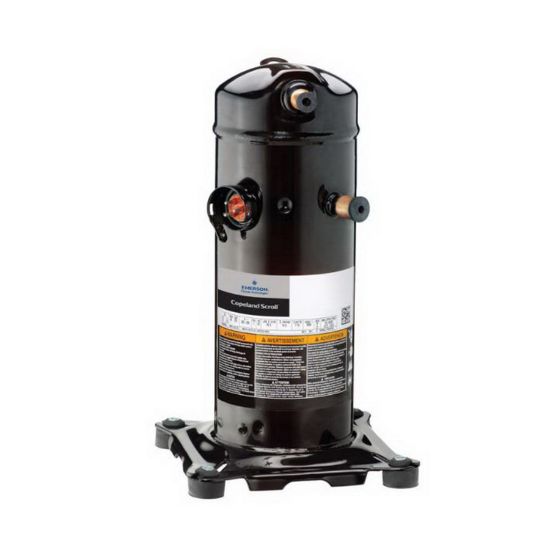

Copeland ZR108KCE-TFE-950 Hermetic Scroll Compressor, 108000 btu/hr, R-22, R-407C, R-134A, 575 VAC at 60Hz, 3 PH, 17A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZR Series, 264mm Length, 285mm Width, 533mm Height, AMP: 17A, 108000 btu/hr BTU, Horsepower: 9 hp, Phase: 3 PH, R-22, R-407C, R-134A Refrigerant, 575 VAC Volts, 60Hz Frequency Rating, Suction Line (OD): 1-3/8 in., Locked Rotor AMP: 111A, 63 dBA Decibel Rating, 7-1/2 x 7-1/2 in. Base, Temperature Rating: 45F Evaporator, 130F Condensing, 65F Return Gas, 95F Ambient, 115F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	264mm
Width	285mm
Height	533mm
AMP	17A
Base Size	7-1/2 x 7-1/2 in.
BTU	108000 btu/hr
Decibel Rating	63 dBA
Frequency Rating	60Hz
Horsepower	9 hp
Locked Rotor AMP	111A
Phase	3 PH
Refrigerant	R-22, R-407C, R-134A
Suction Line (OD)	1-3/8 in.
Temperature Rating	45F Evaporator, 130F Condensing, 65F Return Gas, 95F Ambient, 115F Liquid
Volts	575 VAC
