ZR18K5EPFV800 COMP 230/1 18MBH 407C/2

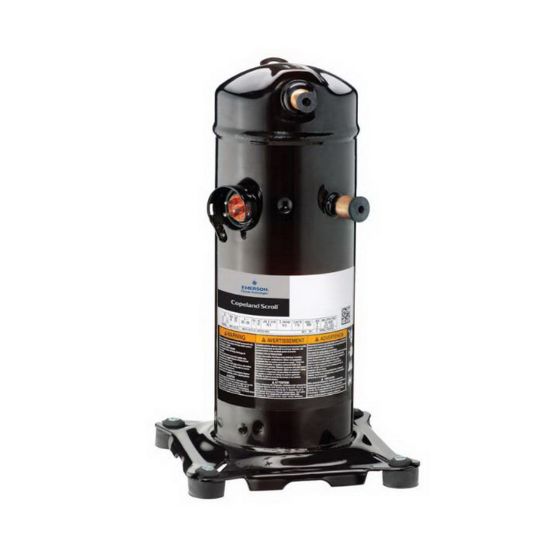

Copeland ZR18K5E-PFV-800 Hermetic Scroll Compressor, 17300 btu/hr, R-22, R-407C, R-134A, 208 - 230 VAC at 60Hz, 1 PH, 7.6A

Manufacturer: Copeland

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	9-1/2 in.
Height	15.86 po
AMP	7.6A
Base Size	7-1/2 x 7-1/2 in.
BTU	17300 btu/hr
Decibel Rating	68 - 73 dBA
Diameter	5-1/2 in.
EER	9.85 - 20.7
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	55A
Mass Flow	251 - 288 lbs/hr
Phase	1 PH
Refrigerant	R-22, R-407C, R-134A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
Watts	1750W
