COPZR21K5EPFV800

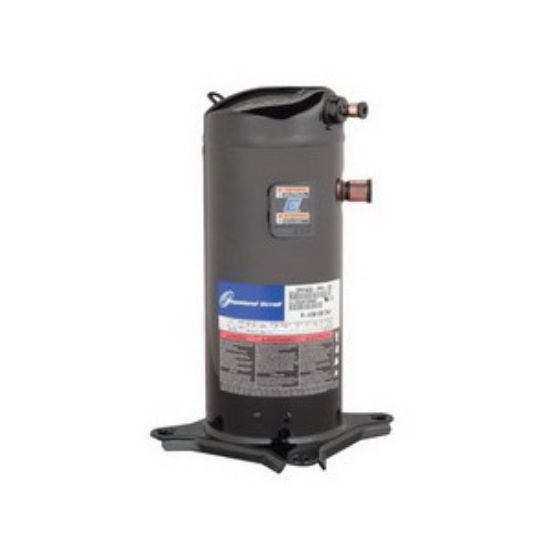

Copeland ZR21K5E-PFV-800 Hermetic Scroll Compressor, 20200 btu/hr, R-22/407C/134A, 208 - 230 VAC at 60Hz, 1 PH, 8.7A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZR Series, 9-1/2 in. Length, 9-1/2 in. Width, 15.86 in. Height, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, BTU: 20200 btu/hr, 9.9 EER, Phase: 1 PH, R-22, R-407C, R-134A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 8.7A, 68 - 73 dBA Decibel Rating, 3500 RPM, 2040W Power Rating, Locked Rotor AMP: 56A, Suction Line (OD): 3/4 in., Liquid Line (OD): 1/2 in., 294 - 338 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	9-1/2 in.
Height	15.86 po
AMP	8.7A
BTU	20200 btu/hr
Decibel Rating	68 - 73 dBA
EER	9.9
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	56A
Mass Flow	294 - 338 lbs/hr
Phase	1 PH
Power Rating	2040W
Refrigerant	R-22, R-407C, R-134A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
