COPZR32K5EPFV800

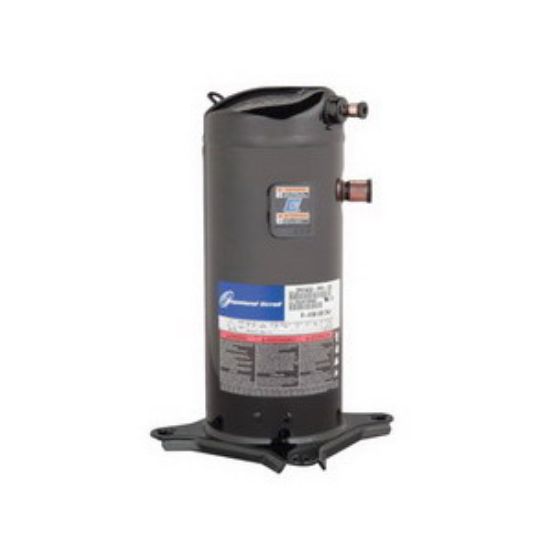

Copeland ZR32K5E-PFV-800 Hermetic Scroll Compressor, 31300 btu/hr, R-22/407C, 208 - 230 VAC at 60Hz, 1 PH, 13.1A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZR Series, 9-1/2 in. Length, 9-1/2 in. Width, 15.86 in. Height, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, BTU: 31300 btu/hr, 10.5 EER, Phase: 1 PH, R-22, R-407C Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 13.1A, 68 - 73 dBA Decibel Rating, 3500 RPM, 2990W Power Rating, Locked Rotor AMP: 87A, Suction Line (OD): 3/4 in., Liquid Line (OD): 1/2 in., 456 - 520 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9-1/2 in.
Width	9-1/2 in.
Height	15.86 po
AMP	13.1A
BTU	31300 btu/hr
Decibel Rating	68 - 73 dBA
EER	10.5
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	87A
Mass Flow	456 - 520 lbs/hr
Phase	1 PH
Power Rating	2990W
Refrigerant	R-22, R-407C
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
