ZR54K5EPFV800 COMP.230/1 54MBH 407C/22

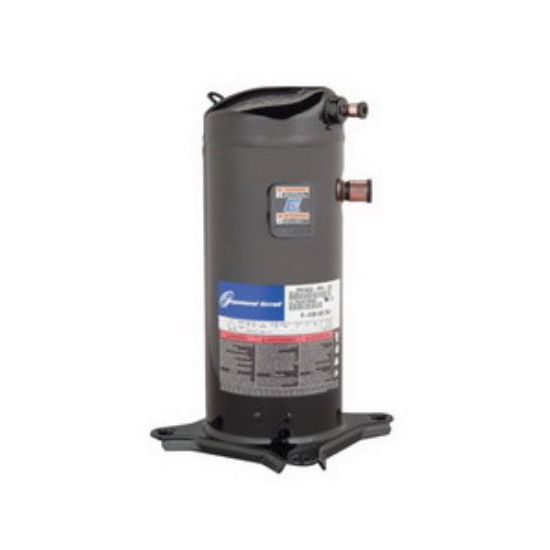

Copeland ZR54K5E-PFV-800 Hermetic Scroll Compressor, 50100 btu/hr, R-22/407C, 208 - 230 VAC at 60Hz, 1 PH, 21.8A

Manufacturer: Copeland

$0.00

Qty:

Hermetic Scroll Compressor, ZR Series, 9.69 in. Length, 9.69 in. Width, 16.94 in. Height, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, BTU: 50100 btu/hr, 10.3 EER, Phase: 1 PH, R-22, R-407C Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, AMP: 21.8A, 70 - 75 dBA Decibel Rating, 3500 RPM, 4850W Power Rating, Locked Rotor AMP: 146A, Suction Line (OD): 7/8 in., Liquid Line (OD): 1/2 in., 729 - 855 lbs/hr Mass Flow

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.69 in.
Width	9.69 in.
Height	16.94 po
AMP	21.8A
BTU	50100 btu/hr
Decibel Rating	70 - 75 dBA
EER	10.3
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	146A
Mass Flow	729 - 855 lbs/hr
Phase	1 PH
Power Rating	4850W
Refrigerant	R-22, R-407C
RPM	3500 RPM
Suction Line (OD)	7/8 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
