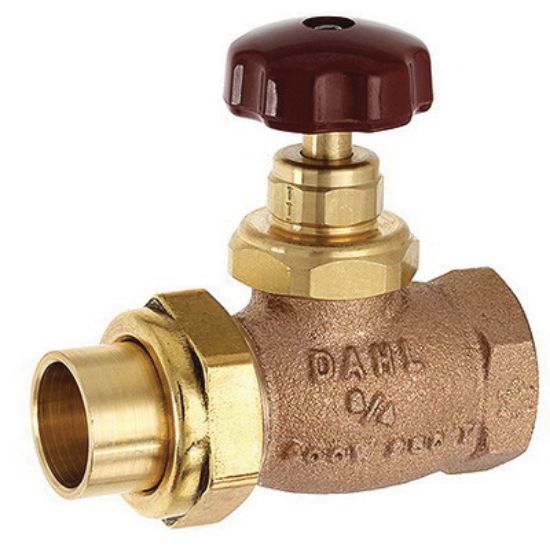

11022 3/4"FXC UNION STRT.RAD VALVE

Dahl 11022-6105 Rough Brass Regular Pattern Straight Radiator Valve, 3/4 in. FIP x 3/4 in. Copper Union, 200 psi

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Regular Pattern Straight Radiator Valve, 3-1/2 in. Length, Brass Body and Bonnet, End Connection 1: FIP, Pressure - Maximum: 200 psi, End Connection 2: Copper Union, Colour/Finish Name: Rough Brass, Valve Size: 3/4 x 3/4 in., Synthetic Rubber Valve Disc, Maximum Temperature: 250F, 4.9 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-1/2 in.
Material	Brass Body and Bonnet
Colour/Finish Name	Rough Brass
End Connection 1	FIP
End Connection 2	Copper Union
Flow Co-Efficient (Cv)	4.9
Maximum Temperature	250F
Pressure - Maximum	200 psi
Valve Disc Material	Synthetic Rubber
Valve Size	3/4 x 3/4 in.
