11022 3/4 FIPXMIP UNION STR RAD VALVE

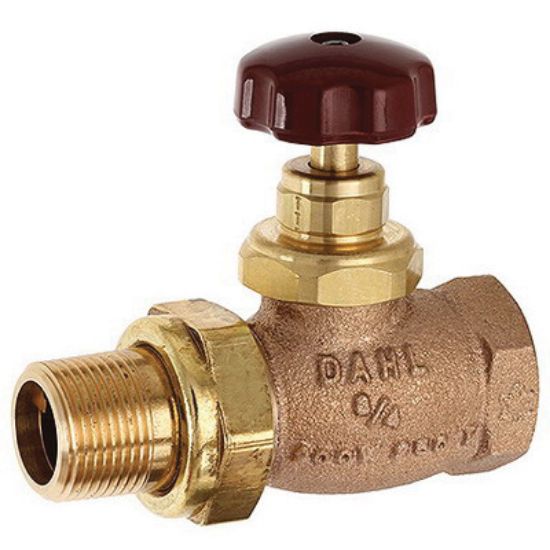

Dahl 11022-6113 Rough Brass Regular Pattern Straight Radiator Valve, 3/4 in. FIP x 3/4 in. MIP Union, 200 psi

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Regular Pattern Straight Radiator Valve, 3-3/4 in. Length, Brass Body and Bonnet, End Connection 1: FIP, Pressure - Maximum: 200 psi, End Connection 2: MIP Union, Colour/Finish Name: Rough Brass, Valve Size: 3/4 x 3/4 in., Buna-N Valve Disc, Maximum Temperature: 250F, 4.9 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-3/4 in.
Material	Brass Body and Bonnet
Colour/Finish Name	Rough Brass
End Connection 1	FIP
End Connection 2	MIP Union
Flow Co-Efficient (Cv)	4.9
Maximum Temperature	250F
Pressure - Maximum	200 psi
Valve Disc Material	Buna-N
Valve Size	3/4 x 3/4 in.
