DAH1210104

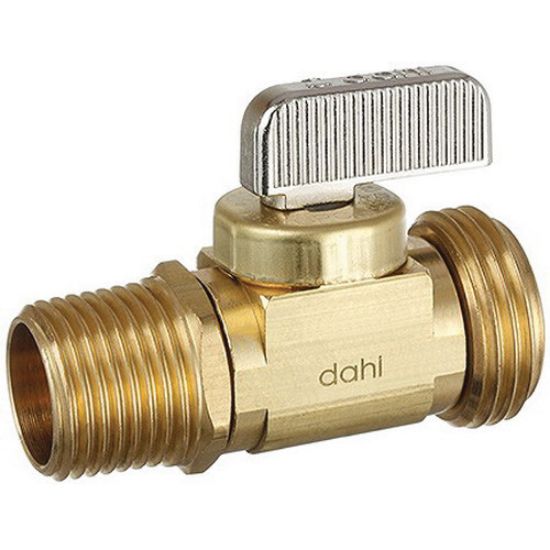

Dahl Mini-Ball 1210104 Rough Brass Straight Ball Valve, 1/2 in., MIP x Male Hose, 250 psi

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Ball Valve, 2.3 in. Length, Brass, Colour/Finish Name: Rough Brass, End Connection 1: MIP, End Connection 2: Male Hose, Nickel-Plated Zinc Handle, 250F Maximum - Temperature, Pressure - Maximum: 250 psi, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Valve Operator: Handle, Valve Size: 1/2 in., PTFE Valve Seal, Dimension: 1 in. Inlet Centre to Top of Handle, Brass Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.3 in.
Material	Brass
Colour/Finish Name	Rough Brass
Dimension	1 in. Inlet Centre to Top of Handle
End Connection 1	MIP
End Connection 2	Male Hose
Handle Material	Nickel-Plated Zinc
Maximum Temperature	250F
Pressure - Maximum	250 psi
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	PTFE
Valve Size	1/2 in.
Valve Trim Material	Brass Ball
