DAH1210404F

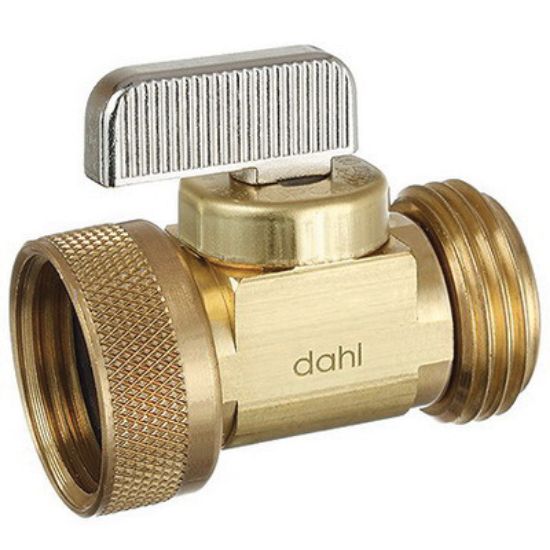

Dahl Mini-Ball 121-04-04F Rough Regular Brass Straight Ball Valve, Male Hose x Female Swivel Hose

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Ball Valve, 2 in. Width, Regular Brass, End Connection 1: Male Hose, Pressure - Maximum: 250 psi, End Connection 2: Female Swivel Hose, Colour/Finish Name: Rough Brass, Valve Operator: Handle, Nickel-Plated Zinc Handle, Dimension: 1.2 in. Inlet Centre to Top of Handle, Teflon, EPDM and Viton O-Ring Valve Seal, Maximum Temperature: 250F, Recommended Valve Application: Water, Specifications - ASME: ASME A112.18.1M, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, 3 Flow Co-Efficient (Cv), Brass Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2 in.
Material	Regular Brass
Colour/Finish Name	Rough Brass
Dimension	1.2 in. Inlet Centre to Top of Handle
End Connection 1	Male Hose
End Connection 2	Female Swivel Hose
Flow Co-Efficient (Cv)	3
Handle Material	Nickel-Plated Zinc
Maximum Temperature	250F
Pressure - Maximum	250 psi
Recommended Valve Application	Water
Specifications - ASME	ASME A112.18.1M
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	Teflon, EPDM and Viton O-Ring
Valve Trim Material	Brass Ball
