DAH1215151

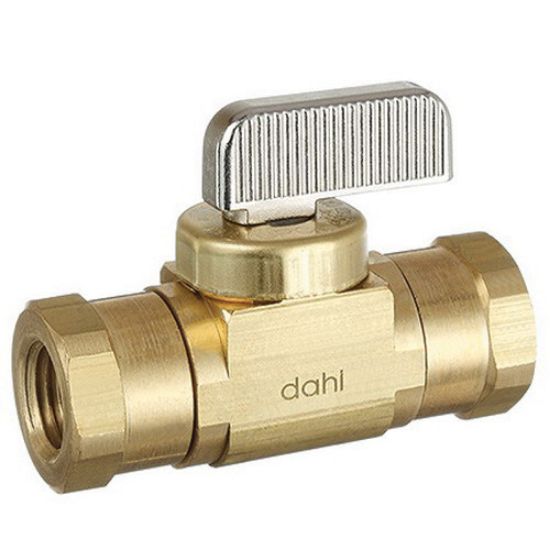

Dahl Mini-Ball 1215151 Regular Brass Straight Ball Valve, 1/4 in. FIP

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Ball Valve, 2.3 in. Length, 1.4 in. Width, Regular Brass, Colour/Finish Name: Rough Brass, End Connection 1: FIP, End Connection 2: FIP, 250F Maximum - Temperature, Pressure - Maximum: 250 psi, Water Recommended Valve Application, Specifications - NSF: NSF 9 and 61, Specifications - NSF Certified: Yes, Valve Operator: Handle, Valve Size: 1/4 in., Nickel-Plated Zinc Handle, Specifications - ASME: ASME A112.18.1M, Teflon, EPDM and Viton O-Ring Valve Seal, Dimension: 1.2 in. Inlet Centre to Top of Handle, Brass Ball Valve Trim, 3 Flow Co-Efficient (Cv)

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.3 in.
Width	1.4 in.
Material	Regular Brass
Colour/Finish Name	Rough Brass
Dimension	1.2 in. Inlet Centre to Top of Handle
End Connection 1	FIP
End Connection 2	FIP
Flow Co-Efficient (Cv)	3
Handle Material	Nickel-Plated Zinc
Maximum Temperature	250F
Pressure - Maximum	250 psi
Recommended Valve Application	Water
Specifications - ASME	ASME A112.18.1M
Specifications - NSF	NSF 9 and 61
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	Teflon, EPDM and Viton O-Ring
Valve Size	1/4 in.
Valve Trim Material	Brass Ball
