DAH1215161

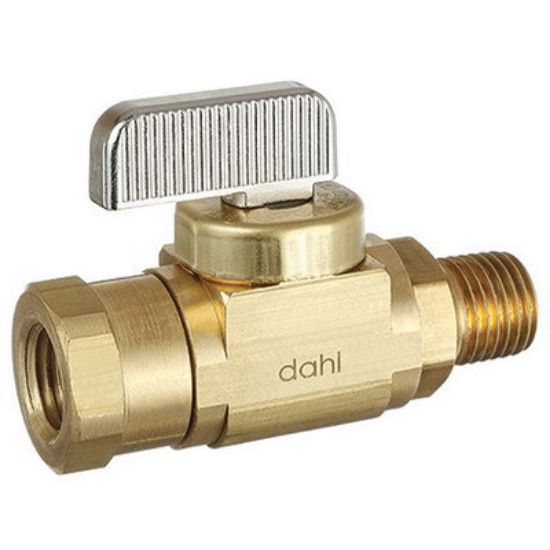

Dahl Mini-Ball 121-51-61 Lead Free Rough Regular Brass Straight Ball Valve, 1/4 in., FNPT x MNPT
Manufacturer: Dahl Brothers Canada
$0.00
Mini-Ball Straight Ball Valve, 2.3 in. Width, Regular Brass, End Connection 1: FNPT, Pressure - Maximum: 250 psi, End Connection 2: MNPT, Colour/Finish Name: Rough Brass, Valve Operator: Handle, Valve Size: 1/4 in., Nickel-Plated Zinc Handle, Dimension: 1.2 in. Inlet Centre to Top of Handle, Teflon, EPDM and Viton O-Ring Valve Seal, Maximum Temperature: 250F, Recommended Valve Application: Water, Specifications - ASME: ASME A112.18.1M, Lead Law Compliant: Yes, Specifications - NSF: NSF 61/9, Specifications - NSF Certified: Yes, 3 Flow Co-Efficient (Cv), Brass Ball Valve Trim
Products specifications
products.specs.attributename products.specs.attributevalue
Width 2.3 in.
Material Regular Brass
Colour/Finish Name Rough Brass
Dimension 1.2 in. Inlet Centre to Top of Handle
End Connection 1 FNPT
End Connection 2 MNPT
Flow Co-Efficient (Cv) 3
Handle Material Nickel-Plated Zinc
Lead Law Compliant Yes
Maximum Temperature 250F
Pressure - Maximum 250 psi
Recommended Valve Application Water
Specifications - ASME ASME A112.18.1M
Specifications - NSF NSF 61/9
Specifications - NSF Certified Yes
Valve Operator Handle
Valve Seal Material Teflon, EPDM and Viton O-Ring
Valve Size 1/4 in.
Valve Trim Material Brass Ball
