121BAL-13-PX3 CXPEX BAL VALVE

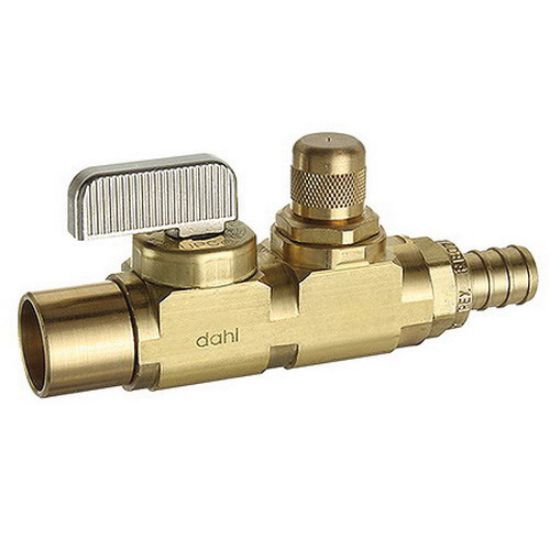

Dahl Mini-Ball 121BAL13PX3 Rough Brass Straight Balancing Valve, 1/2 in., Female Solder Copper x PEX Crimp

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Balancing Valve, 3.9 in. Length, Brass, End Connection 1: Female Solder Copper, End Connection 2: PEX Crimp, Pressure - Maximum: 250 psi, Valve Size: 1/2 in., Teflon, EPDM and Viton O-Ring Valve Seal, Dimension: 1.2 in. Inlet Centre to Top of Handle, 3.1 (Full Open) Flow Co-Efficient (Cv), Coating: Rough Brass, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, Nickel-Plated Zinc Handle, 250F Maximum - Temperature, Specifications - ASTM: ASTM F-1807, Valve Operator: Handle

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3.9 in.
Material	Brass
Coating	Rough Brass
Dimension	1.2 in. Inlet Centre to Top of Handle
End Connection 1	Female Solder Copper
End Connection 2	PEX Crimp
Flow Co-Efficient (Cv)	3.1 (Full Open)
Handle Material	Nickel-Plated Zinc
Maximum Temperature	250F
Pressure - Maximum	250 psi
Specifications - ASTM	ASTM F-1807
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	Teflon, EPDM and Viton O-Ring
Valve Size	1/2 in.
