521PRPX5PRPX5 LLC 3/4X3/4 F1960 STR

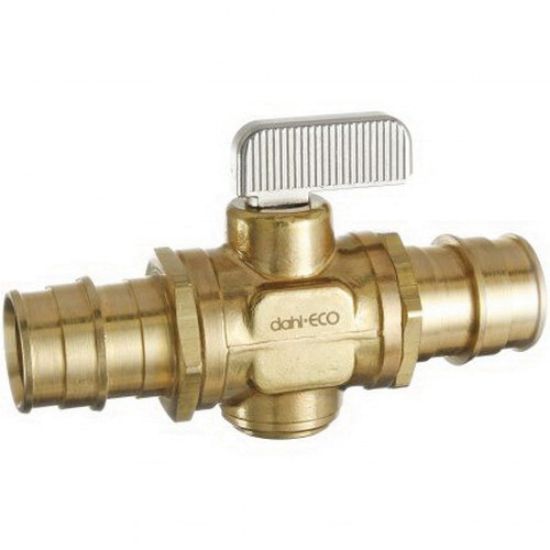

Dahl Mini-Ball 521-PRPX5-PRPX5 3/4 in. PEX F1960 Straight Inline Stop and Isolation Valve Lead Free Rough Brass

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Inline Stop and Isolation Valve, 4 in. Length, Brass, End Connection 1: PEX, End Connection 2: PEX, Lead Law Compliant: Yes, Pressure - Maximum: 250 psi, Valve Size: 3/4 in., PTFE, EPDM and FKM O-Ring Valve Seal, Dimension: 1.3 in. Inlet Centre to Top of Handle, 6 Flow Co-Efficient (Cv), Coating: Rough Brass, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, 250F Maximum - Temperature, Specifications - ASTM: ASTM F-1960, ASTM C-693, ASTM C-377, Valve Operator: Handle, Brass Ball Valve Trim, Specifications - ASME: ASME A112.18.1

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4 in.
Material	Brass
Coating	Rough Brass
Dimension	1.3 in. Inlet Centre to Top of Handle
End Connection 1	PEX
End Connection 2	PEX
Flow Co-Efficient (Cv)	6
Lead Law Compliant	Yes
Maximum Temperature	250F
Pressure - Maximum	250 psi
Specifications - ASME	ASME A112.18.1
Specifications - ASTM	ASTM F-1960, ASTM C-693, ASTM C-377
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	PTFE, EPDM and FKM O-Ring
Valve Size	3/4 in.
Valve Trim Material	Brass Ball
