DAH521PX3PX3D

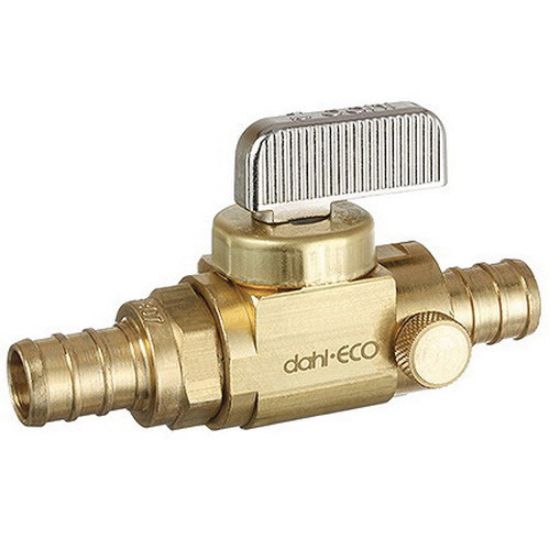

Dahl Mini-Ball 521-PX3-PX3D 1/2 in" PEX Crimp Straight Inline Stop and Isolation Valve with Drain Lead Free Rough Brass

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Inline Stop and Isolation Valve with Drain, 2.9 in. Length, Brass, End Connection 1: PEX Crimp, End Connection 2: PEX Crimp, Lead Law Compliant: Yes, Pressure - Maximum: 250 psi, Valve Size: 1/2 in., PTFE, EPDM and FKM O-Ring Valve Seal, 3 Flow Co-Efficient (Cv), Coating: Rough Brass, Specifications - NSF: NSF 61G and 372, Specifications - NSF Certified: Yes, Nickel-Plated Zinc Handle, 250F Maximum - Temperature, Specifications - ASTM: ASTM F-1807, Valve Operator: Handle, Brass Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.9 in.
Material	Brass
Coating	Rough Brass
End Connection 1	PEX Crimp
End Connection 2	PEX Crimp
Flow Co-Efficient (Cv)	3
Handle Material	Nickel-Plated Zinc
Lead Law Compliant	Yes
Maximum Temperature	250F
Pressure - Maximum	250 psi
Specifications - ASTM	ASTM F-1807
Specifications - NSF	NSF 61G and 372
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	PTFE, EPDM and FKM O-Ring
Valve Size	1/2 in.
Valve Trim Material	Brass Ball
