521-PX5-PX5 RB 3/4 PX X3/4 PX MINI BV

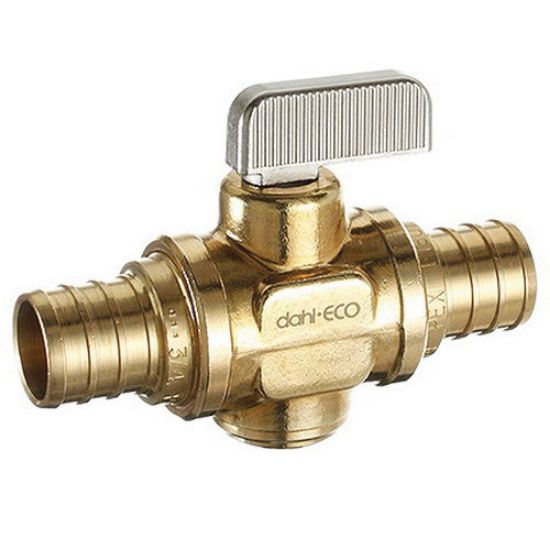

Dahl Mini-Ball 521-PX5-PX5 3/4" PEX Crimp Straight Inline Stop and Isolation Valve Lead Free Rough Brass

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Straight Inline Stop and Isolation Valve, 2.9 in. Length, Brass, End Connection 1: PEX Crimp, End Connection 2: PEX Crimp, Lead Law Compliant: Yes, Pressure - Maximum: 250 psi, Valve Size: 3/4 in., Teflon, EPDM and Viton O-Ring Valve Seal, Dimension: 1.3 in. Inlet Centre to Top of Handle, 6 Flow Co-Efficient (Cv), Coating: Rough Brass, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Nickel-Plated Zinc Handle, 250F Maximum - Temperature, Specifications - ASTM: ASTM F-1807, Valve Operator: Handle, Brass Ball Valve Trim, Specifications - ASME: ASME A112.18.1

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2.9 in.
Material	Brass
Coating	Rough Brass
Dimension	1.3 in. Inlet Centre to Top of Handle
End Connection 1	PEX Crimp
End Connection 2	PEX Crimp
Flow Co-Efficient (Cv)	6
Handle Material	Nickel-Plated Zinc
Lead Law Compliant	Yes
Maximum Temperature	250F
Pressure - Maximum	250 psi
Specifications - ASME	ASME A112.18.1
Specifications - ASTM	ASTM F-1807
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	Teflon, EPDM and Viton O-Ring
Valve Size	3/4 in.
Valve Trim Material	Brass Ball
