611PRPX331 LLC 1/2 F1960X3/8OD ANG

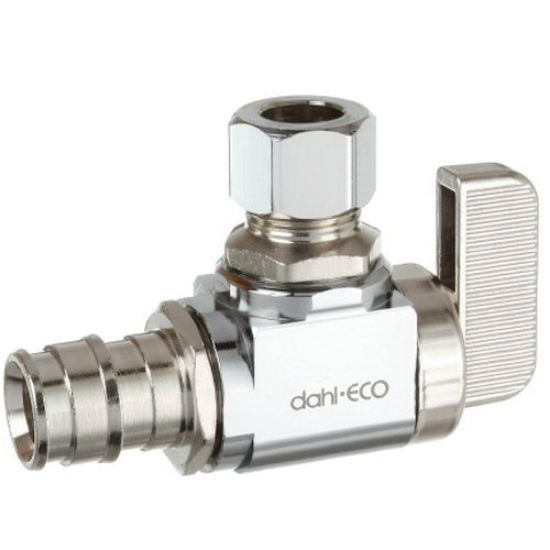

Dahl Mini-Ball 611PRPX331 Chrome-Plated Lead-Free Brass Angle Supply Stop Valve, 1/2 x 3/8 in., PEX x OD Compression

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Angle Supply Stop Valve, Brass, End Connection 1: PEX, End Connection 2: OD Compression, Lead Law Compliant: Yes, 24 Box, 144 Case Package Quantity, Pressure - Maximum: 250 psi, Specifications - ASTM: ASTM F-1960, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Valve Size: 1/2 x 3/8 in., Colour/Finish Name: Chrome-Plated, Valve Operator: Handle, Nickel-Plated Zinc Handle, PTFE, EPDM and FKM O-Ring Valve Seal, Brass Ball Valve Trim, 1.8 Flow Co-Efficient (Cv), 250F Maximum - Temperature

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Brass
Colour/Finish Name	Chrome-Plated
End Connection 1	PEX
End Connection 2	OD Compression
Flow Co-Efficient (Cv)	1.8
Handle Material	Nickel-Plated Zinc
Lead Law Compliant	Yes
Maximum Temperature	250F
Package Quantity	24 Box, 144 Case
Pressure - Maximum	250 psi
Specifications - ASTM	ASTM F-1960
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	PTFE, EPDM and FKM O-Ring
Valve Size	1/2 x 3/8 in.
Valve Trim Material	Brass Ball
