DAH611PX33114WHA

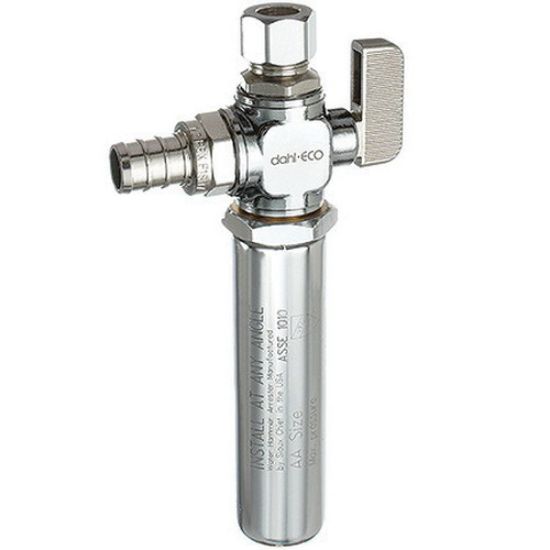

Dahl Mini-Ball 611PX33114WHA Chrome-Plated Lead-Free Brass Angle Supply Stop with Integral Water Hammer Arrester, 1/2 x 3/8 in., PEX Crimp x OD Compression

Manufacturer: Dahl Brothers Canada

$0.00

Qty:

Mini-Ball Angle Supply Stop with Integral Water Hammer Arrester, Brass, End Connection 1: PEX Crimp, End Connection 2: OD Compression, Lead Law Compliant: Yes, 12 Box, 72 Case Package Quantity, Pressure - Maximum: 250 psi, Specifications - ASTM: ASTM F-1807, ASTM C-693, Specifications - NSF: NSF 61G, Specifications - NSF Certified: Yes, Valve Size: 1/2 x 3/8 in., Colour/Finish Name: Chrome-Plated, Valve Operator: Handle, Nickel-Plated Zinc Handle, PTFE, EPDM and FKM O-Ring Valve Seal, Brass Ball Valve Trim, 250F Maximum - Temperature

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Brass
Colour/Finish Name	Chrome-Plated
End Connection 1	PEX Crimp
End Connection 2	OD Compression
Handle Material	Nickel-Plated Zinc
Lead Law Compliant	Yes
Maximum Temperature	250F
Package Quantity	12 Box, 72 Case
Pressure - Maximum	250 psi
Specifications - ASTM	ASTM F-1807, ASTM C-693
Specifications - NSF	NSF 61G
Specifications - NSF Certified	Yes
Valve Operator	Handle
Valve Seal Material	PTFE, EPDM and FKM O-Ring
Valve Size	1/2 x 3/8 in.
Valve Trim Material	Brass Ball
