DAN013G8044

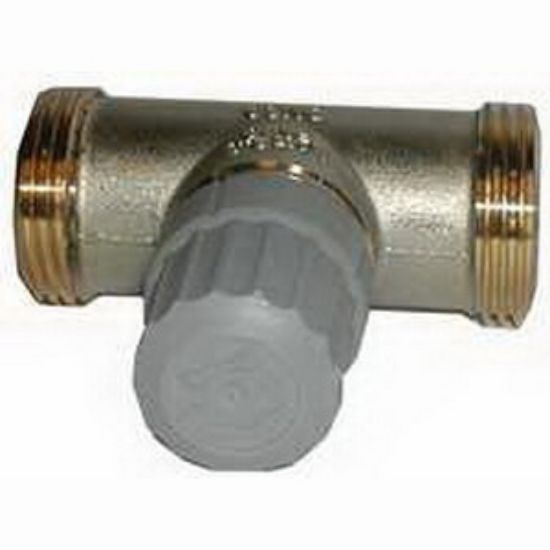

Danfoss 013G8044 Nickel-Plated Brass Thermostatic Radiator Straight Valve, 3/4 in., Double Solder Union, 15psig Steam, 15 psi Differential (Hot Water)

Manufacturer: Danfoss

$0.00

Qty:

Thermostatic Radiator Straight Valve, RA2000 Series, Brass Body and Bonnet, End Connection 1: Double Solder Union, End Connection 2: Double Solder Union, 250F Maximum - Temperature, Pressure - Maximum: 145 psi Static, 232 psi Test and 15 psi Differential (Hot Water), 15psig Steam, 232psig Test (Steam), EPDM Valve Disc, Valve Size: 3/4 in., 2.7 Flow Co-Efficient (Cv), Colour/Finish Name: Nickel-Plated

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Brass Body and Bonnet
Colour/Finish Name	Nickel-Plated
End Connection 1	Double Solder Union
End Connection 2	Double Solder Union
Flow Co-Efficient (Cv)	2.7
Maximum Temperature	250F
Pressure - Maximum	145 psi Static, 232 psi Test and 15 psi Differential (Hot Water), 15psig Steam, 232psig Test (Steam)
Valve Disc Material	EPDM
Valve Size	3/4 in.
