150MM X 100MM (6X4) CONC FLG DI CL RED

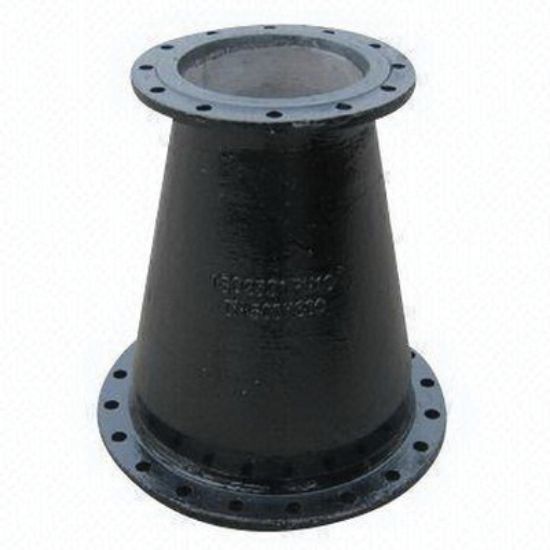

FRD0604 Ductile Iron Cement-Lined with Red Prime Full Body Concentric Reducer, 6 x 4 in., Flanged

$0.00

Qty:

Full Body Concentric Reducer, 9 in. Length, Ductile Iron, End Connection 1: Flanged, Fitting Size 1: 6 in., Pressure - Maximum: 250 psi, Specifications - FM Approved: Yes, End Connection 2: Flanged, Fitting Size 2: 4 in., Specifications - ASTM: ASTM A-536, 0.55 x 0.52 in. Thickness, Specifications - ANSI: ANSI B16.1, Specifications - NSF: NSF 61 and 372, Specifications - NSF Certified: Yes, Coating: Cement-Lined with Red Prime, Specifications - AWWA: AWWA C-110, AWWA C-104, Import Origin, Pressure Class: 125#

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9 in.
Material	Ductile Iron
Coating	Cement-Lined with Red Prime
End Connection 1	Flanged
End Connection 2	Flanged
Fitting Size 1	6 in.
Fitting Size 2	4 in.
Pressure - Maximum	250 psi
Pressure Class	125#
Specifications - ANSI	ANSI B16.1
Specifications - ASTM	ASTM A-536
Specifications - AWWA	AWWA C-110, AWWA C-104
Specifications - FM Approved	Yes
Specifications - NSF	NSF 61 and 372
Specifications - NSF Certified	Yes
Thickness	0.55 x 0.52 in.
