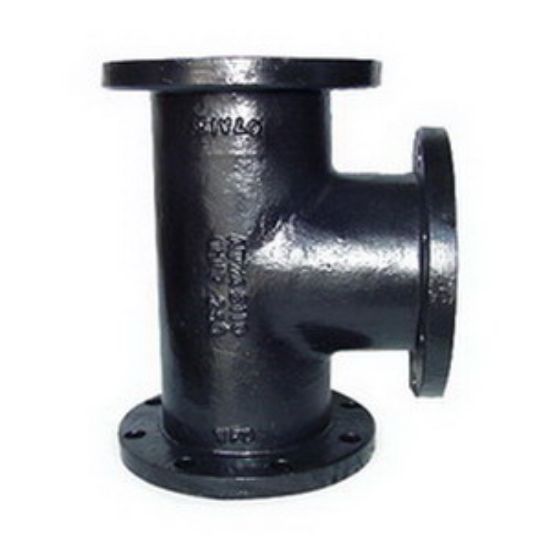

150MM X 75MM (6X3) TEE FLGD DI CL

FTD0603 125# Ductile Iron Cement-Lined with Red Prime Full Body Tee, 6 x 6 x 3 in., Flanged

$0.00

Qty:

Full Body Tee, Ductile Iron, Coating: Cement Lined with Red Prime, End Connection 1: Flanged, End Connection 2: Flanged, Flanged End Connection 3, Fitting Size 1: 6 in., Fitting Size 2: 6 in., 3 in. Fitting Size 3, Pressure - Maximum: 250 psi, 125# Pressure Class, Specifications - ANSI: ANSI B16.1, Specifications - ASTM: ASTM A-536, Specifications - AWWA: AWWA C-110, AWWA C-104, Specifications - FM Approved: Yes, Specifications - NSF: NSF 61 and 372, Specifications - NSF Certified: Yes, Other Physical Dimensions: 8 in. Centre to End, 0.55 x 0.48 in. Thickness

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Coating	Cement Lined with Red Prime
End Connection 1	Flanged
End Connection 2	Flanged
End Connection 3	Flanged
Fitting Size 1	6 in.
Fitting Size 2	6 in.
Fitting Size 3	3 in.
Pressure - Maximum	250 psi
Pressure Class	125#
Specifications - ANSI	ANSI B16.1
Specifications - ASTM	ASTM A-536
Specifications - AWWA	AWWA C-110, AWWA C-104
Specifications - FM Approved	Yes
Specifications - NSF	NSF 61 and 372
Specifications - NSF Certified	Yes
Thickness	0.55 x 0.48 in.
