DIMJGLR6

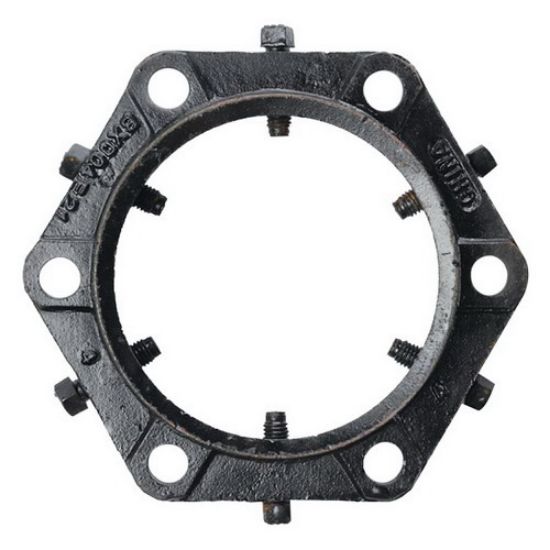

RMG6 Ductile Iron Heavy-Duty Retainer Gland, 6 in., Mechanical Joint

$0.00

Qty:

Heavy-Duty Retainer Gland, Ductile Iron, End Connection 1: Mechanical Joint, Fits Pipe Size: 6 in., Pressure - Maximum: 350 psi, 350# Pressure Class, Specifications - ANSI: ANSI A21.53, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Specifications - AWWA: AWWA C-153, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, (6) 5/8 x 2 in. Screw Size, 85 ft-lbs Torque Rating, 6.9 in. Diameter - Outside 1, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Diameter - Outside 1	6.9 in.
End Connection 1	Mechanical Joint
Fits Pipe Size	6 in.
Pressure - Maximum	350 psi
Pressure Class	350#
Specifications - ANSI	ANSI A21.53
Specifications - ASTM	ASTM A-536 Grade 65-45-12
Specifications - AWWA	AWWA C-153
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Torque Rating	85 ft-lbs
