DISDHCE810

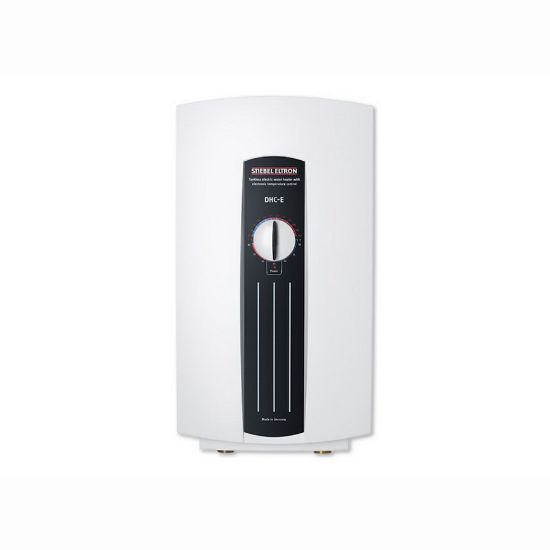

DHC-E 8/10 Compact Instantaneous Tankless Water Heater, 5.4/7.2kW, 7.2/9.6kW, 208/240V, 26/35A, 30/40A, 1 PH, 150 psi

$0.00

Qty:

Compact Instantaneous Tankless Water Heater, Model: DHC-E 8/10, 7-1/8 in. Width, 14-3/16 in. Height, AMP: 26/35A, 30/40A, Colour/Finish Name: White, End Connection 1: NPT, End Connection 2: NPT, 0.264 gpm Flow Rate, Lead Law Compliant: Yes, 131F Inlet Maximum - Temperature, Phase: 1 PH, Pressure - Maximum: 150 psi Working, 300 psi Test, CSA E335-1, E335-2-35 Specifications - CSA Certified, Specifications - NSF: NSF 372, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, Supply Pipe Connection Size: 1/2 in. Water, 208/240V Volts, 5.4/7.2kW, 7.2/9.6kW Watts, Depth: 4-1/8 in., 50/60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	7-1/8 in.
Height	14-3/16 po
AMP	26/35A, 30/40A
Colour/Finish Name	White
Depth	4-1/8 in.
End Connection 1	NPT
End Connection 2	NPT
Frequency Rating	50/60Hz
Lead Law Compliant	Yes
Maximum Temperature	131F Inlet
Phase	1 PH
Pressure - Maximum	150 psi Working, 300 psi Test
Specifications - CSA Certified	CSA E335-1, E335-2-35
Specifications - NSF	NSF 372
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
Supply Pipe Connection Size	1/2 in. Water
Volts	208/240V
Watts	5.4/7.2kW, 7.2/9.6kW
