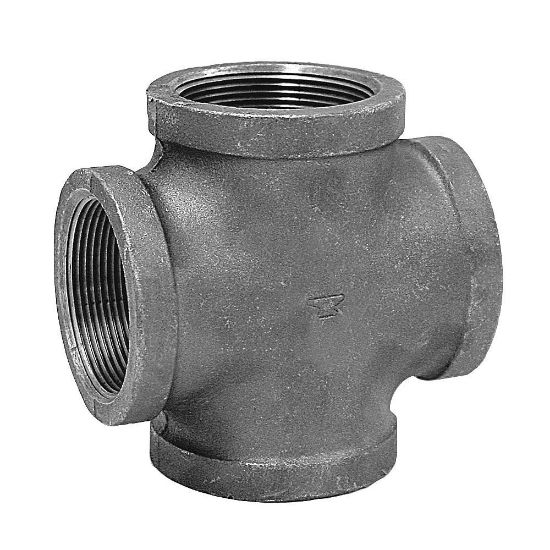

DOM 1" STD BLK MALL CROSS

1107 150# SCH STD Black Malleable Iron Cross, 1 in., FNPT
$0.00
Cross, Model: 1107, Malleable Iron, Coating: Black, End Connection 1: FNPT, End Connection 2: FNPT, End Connection 3: FNPT, Fitting Size 1: 1 in., Fitting Size 2: 1 in., Fitting Size 3: 1 in., Fitting Size 4: 1 in., Pressure Class: 150#, Specifications - ASME: ASME B16.3, ASME B1.20.1+, Specifications - ASTM: ASTM A-197, End Connection 4: FNPT, Maximum Temperature: -20 to 150F, Pressure - Maximum: 300 psi, STD Schedule, Other Physical Dimensions: 1-1/2 in. Centre to End, Domestic Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Material Malleable Iron
Coating Black
End Connection 1 FNPT
End Connection 2 FNPT
End Connection 3 FNPT
End Connection 4 FNPT
Fitting Size 1 1 in.
Fitting Size 2 1 in.
Fitting Size 3 1 in.
Fitting Size 4 1 in.
Maximum Temperature -20 to 150F
Pressure - Maximum 300 psi
Pressure Class 150#
Schedule STD
Specifications - ASME ASME B16.3, ASME B1.20.1+
Specifications - ASTM ASTM A-197
