DTV225110

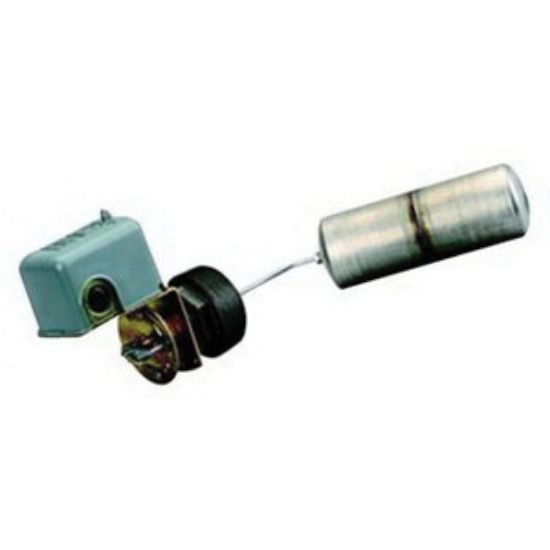

Boshart Pumptrol 9037 Stainless Steel Type HG Closed Tank Float Switch, 600V, 10A Continuous, 2-1/2 in. Threaded, 475 psi, DPST

$0.00

Qty:

Pumptrol Type HG Closed Tank Float Switch, Model: 9037, Material: Stainless Steel, AMP: 10A Continuous, 20A gG Cartridge Fuse, End Connection 1: Threaded, Fitting Size 1: 2-1/2 in., Horsepower: 3 hp at 230 VAC 1 PH, 5 hp at 230 VAC 3 PH, 1/2 hp at 230 VDC, Maximum Temperature: -22 to 220F, Pressure - Maximum: 3 - 150 psi Range, 6 - 30 psi Differential, 475 psi Maximum, Specifications - CSA Certified: CSA LR25490, Specifications - UL Listed: Yes, 600V Maximum, 230 VAC at 1 PH, 575 VAC at 3 PH, 230 VDC, 120 - 600 VAC, 125/250 VDC Contact, 575V Insulation Volts, Package Type: Box, Specifications - NEMA: NEMA1, DPST, (2) Normally Closed Configuration, Mounting Type: Screw-In Bushing

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Stainless Steel
AMP	10A Continuous, 20A gG Cartridge Fuse
Configuration	DPST, (2) Normally Closed
End Connection 1	Threaded
Fitting Size 1	2-1/2 in.
Horsepower	3 hp at 230 VAC 1 PH, 5 hp at 230 VAC 3 PH, 1/2 hp at 230 VDC
Maximum Temperature	-22 to 220F
Motor Type	Screw-In Bushing
Package Type	Box
Pressure - Maximum	3 - 150 psi Range, 6 - 30 psi Differential, 475 psi Maximum
Specifications - CSA Certified	CSA LR25490
Specifications - NEMA	NEMA1
Specifications - UL Listed	Yes
Volts	600V Maximum, 230 VAC at 1 PH, 575 VAC at 3 PH, 230 VDC, 120 - 600 VAC, 125/250 VDC Contact, 575V Insulation
