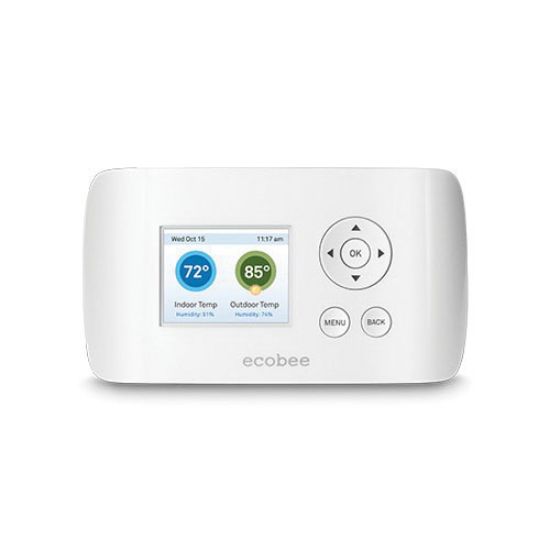

C++ EB-SMARTSI-01 SMART SI TSTAT

Ecobee EB-SMARTSI-01 Wh7 days Wi-Fi Programmable Thermostat, 3H/2C Heat Pumps, 2H/2C Conventional Systems, 24 VAC

Manufacturer: Ecobee thermostat

$0.00

Qty:

Wi-Fi Programmable Thermostat, 3-1/4 in. Length, 5-1/2 in. Width, Colour/Finish Name: White, Depth: 1 in., Hardwired Power Source, Programmability: 7 day Program, Stages: 3H/2C Heat Pumps, 2H/2C Conventional Systems, 24 VAC Volts, Automatic Changeover, Humidity Range: 5 - 95% RH Non-Condensing Operating, 20 - 90% RH Display with Plus or Minus 5% RH Sensitivity, Temperature Range: 0 - 55C Operating, 7 - 33C Desired, 5 - 37C Display with Plus or Minus 0.5C Sensitivity, Switch Type: Push Button, 2-1/2 in. Full Colour LCD Non-Touchscreen, 320 x 240 Pixel Display, Mounting Type: Horizontal, Terminal Designations: Rc, Rh, G, C, Y, Y2, W O/B, W2 (AUX2), Includes: ecobee3 Smart Si Thermostat, Installation Guide, Jumper Wire, Large Trim Plate

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3-1/4 in.
Width	5-1/2 in.
Changeover	Automatic
Colour/Finish Name	White
Depth	1 in.
Display Type	2-1/2 in. Full Colour LCD Non-Touchscreen, 320 x 240 Pixel
Humidity Range	5 - 95% RH Non-Condensing Operating, 20 - 90% RH Display with Plus or Minus 5% RH Sensitivity
Motor Type	Horizontal
Power Source	Hardwired
Programmability	7 day Program
Stages	3H/2C Heat Pumps, 2H/2C Conventional Systems
Switch Type	Push Button
Temperature Range	0 - 55C Operating, 7 - 33C Desired, 5 - 37C Display with Plus or Minus 0.5C Sensitivity
Terminal Designations	Rc, Rh, G, C, Y, Y2, W O/B, W2 (AUX2)
Volts	24 VAC
