FAF554

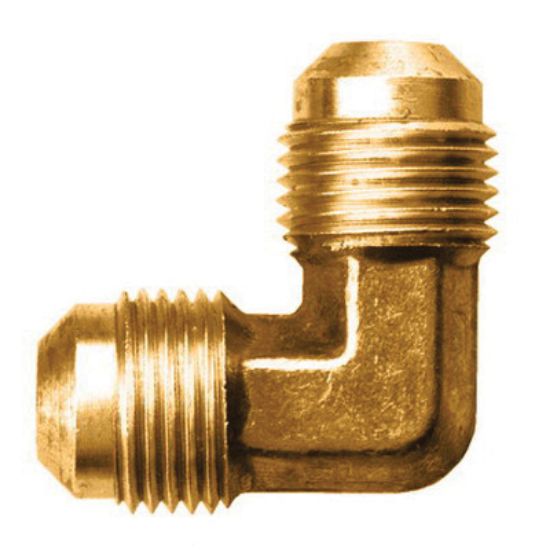

55-4 Forged Brass 90 Degree Union Elbow, 1/4 in., OD Tube

$0.00

Qty:

Union Elbow, Material: Forged Brass, 90 Degree Angle, End Connection 1: OD Tube, End Connection 2: OD Tube, Fitting Size 1: 1/4 in., Fitting Size 2: 1/4 in., Maximum Temperature: -65 to 250F, Pressure - Maximum: 1400 psi, Other Physical Dimension: 0.03 in. Wall Thickness Copper Tube, Material Specification: UNS C37700

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Forged Brass
Angle	90 Degree
End Connection 1	OD Tube
End Connection 2	OD Tube
Fitting Size 1	1/4 in.
Fitting Size 2	1/4 in.
Material Specification	UNS C37700
Maximum Temperature	-65 to 250F
Pressure - Maximum	1400 psi
