1170429 VALVE N HSI SNAP SV9501M

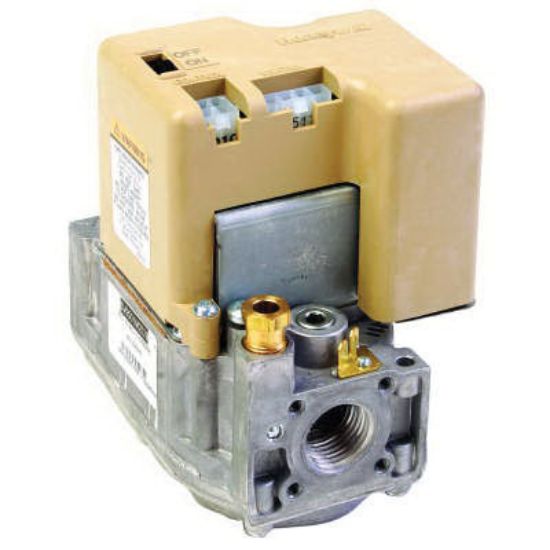

Heil 1170429 Gas Valve, 1/2 x 1/2 in. NPT
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 4.1 in.
Width 3.2 in.
Height 4.9 po
Body Pattern Straight-Through
Frequency Rating 50/60Hz
Fuel Type Natural Gas
Ignition Type Intermittent Hot Surface Pilot Ignition
Inlet/Outlet 1/2 x 1/2 in. NPT
Motor Type 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Opening Characteristic Standard Opening
Pressure Regulator Setpoint 3.2 in. WC
Pressure Tapping 1/8 in. NPT
Temperature Rating -40 to 175F Ambient
Volts 24 VAC
