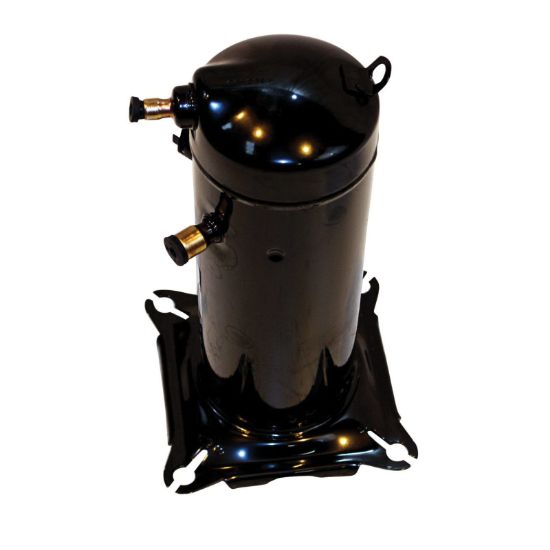

ZP20K5EPFV830 COMPRESSOR R410A

ZP20K5E-PFV-830 Hermetic Scroll Compressor, 20000 btu/hr, R-410A, 208/230 VAC at 60Hz, 1 PH, 15A

Manufacturer: International Comfort Products

$0.00

Qty:

Hermetic Scroll Compressor, 8.7 in. Length, 6.9 in. Width, 15.3 in. Height, AMP: 15A, 20000 btu/hr BTU, Phase: 1 PH, R-410A Refrigerant, 208/230 VAC Volts, 66 - 71dB Decibel Rating, 9.8 - 20.6 EER, 295 - 336 lbs/hr Mass Flow, 1330 - 2040W Power Rating, 3500 RPM, Suction Line Size: 3/4 in., 1/2 in. Liquid Line Size, Locked Rotor AMP: 58.3A, 7-1/2 x 7-1/2 in. Base, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	8.7 in.
Width	6.9 in.
Height	15.3 po
AMP	15A
Base Size	7-1/2 x 7-1/2 in.
BTU	20000 btu/hr
Decibel Rating	66 - 71dB
EER	9.8 - 20.6
Frequency Rating	60Hz
Locked Rotor AMP	58.3A
Mass Flow	295 - 336 lbs/hr
Phase	1 PH
Power Rating	1330 - 2040W
Refrigerant	R-410A
RPM	3500 RPM
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208/230 VAC
